STMicroelectronics STM32L412RBI6P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.59 | $9.59 |
| 15+ | $2.21 | $33.15 |
| 25+ | $2.16 | $54.00 |
| 50+ | $2.04 | $102.00 |
| 100+ | $1.80 | $180.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L4 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | I2C, Infrared, IrDA, LINbus, Quad SPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, PWM, WDT, (External SMPS Required) |
| Number of I/O | 52 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 40K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

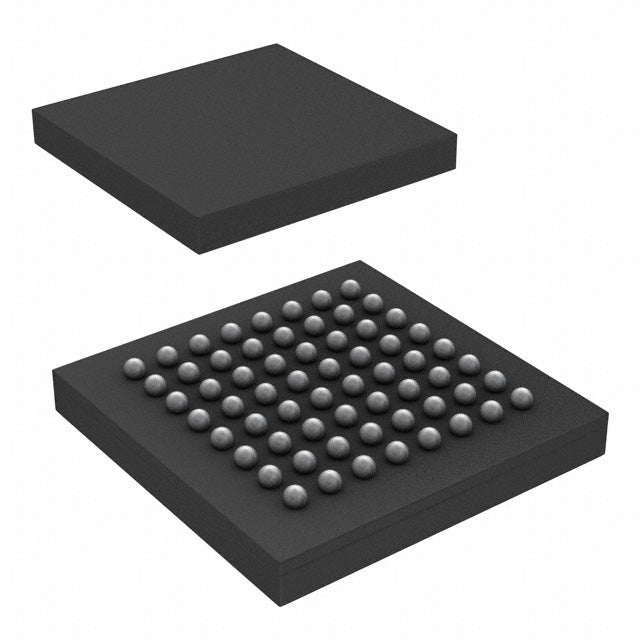

| Supplier Device Package | 64-UFBGA (5x5) |
| Package / Case | 64-UFBGA |
| ROHS |  |
The STM32L412RBI6P is an ultra-low-power ARM Cortex-M4 microcontroller from STMicroelectronics, running at 80MHz. It features 128KB flash and 40KB SRAM, with a supply range of 1.71V to 3.6V. This 64-ball UFBGA device includes brown-out detection, DMA, PWM, and WDT, and supports an external SMPS for advanced power management.
- External SMPS support: Enables higher efficiency in power-critical designs.
- High-speed processing: 80MHz Cortex-M4 for demanding tasks.
- Compact form factor: 64-UFBGA ideal for space-limited PCBs.
- Comprehensive safety: Brown-out reset and WDT ensure stable operation.
- Large memory: 128KB flash and 40KB SRAM for complex applications.
High-Efficiency Battery Devices
External SMPS support allows designers to achieve peak energy conversion efficiency.
Industrial Sensors
80MHz processing power handles real-time data analysis with low latency.
Smart Meters
Low-power modes and robust reset circuitry ensure accurate long-term operation.
Medical Wearables
The compact UFBGA package and 1.71V operation suit miniaturized health monitors.
Building Automation
PWM outputs control lighting and HVAC actuators with precision.
Portable Test Equipment
DMA and 40KB RAM buffer high-speed measurements for analysis.
- Q: What is the core processor of the STM32L412RBI6P?
- A: It uses the ARM Cortex-M4 core at 80 MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It has 128KB flash and 40KB SRAM.
- Q: What package is available?
- A: It comes in a 64-ball UFBGA package.
- Q: Does it require an external SMPS?
- A: Yes, it supports an external SMPS for enhanced power efficiency.
