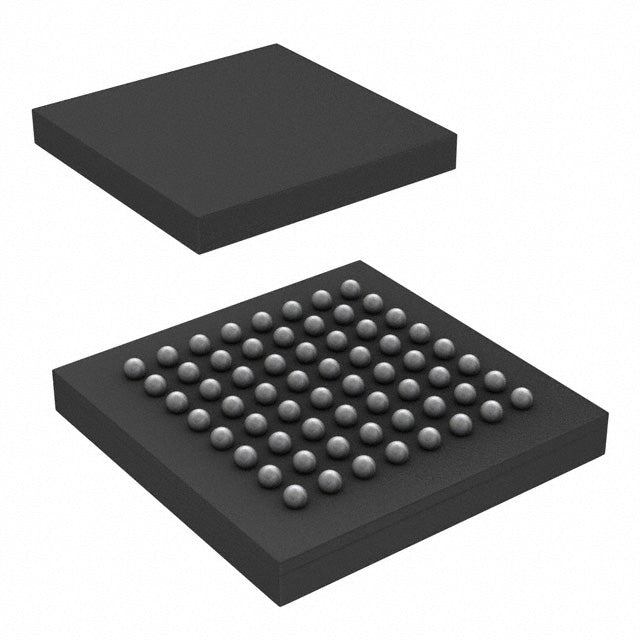

STMicroelectronics STM32L443RCI3
Normaler Preis
$9.04
Normaler Preis
$6.46
Verkaufspreis
$9.04
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.04 | $9.04 |
| 15+ | $5.94 | $89.10 |
| 25+ | $5.81 | $145.25 |
| 50+ | $5.49 | $274.50 |
| 100+ | $4.85 | $485.00 |
| N+ | $0.97 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Produktattribute | Eigenschaftswert |
| Hersteller | STMicroelectronics |
| Produktserie | STM32L4 |
| Verpackung | Tray | NULL |
| Kernprozessor | ARM® Cortex®-M4 |
| Kerngröße | 32-Bit Single-Core |
| Geschwindigkeit | 80MHz |
| Konnektivität | CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB |
| Peripheriegeräte | Brown-out Detect/Reset, DMA, LCD, PWM, WDT |
| Anzahl der E/A | 52 |
| Programmspeichergröße | 256KB (256K x 8) |
| Programmspeichertyp | FLASH |
| EEPROM-Größe | - |
| RAM-Größe | 64K x 8 |
| Spannung - Versorgung (Vcc/Vdd) | 1,71V ~ 3,6V |
| Datenwandler | A/D 16x12b; D/A 2x12b |
| Oszillatortyp | Intern |
| Betriebstemperatur | -40°C ~ 125°C (TA) |
| Klasse | - |
| Qualifizierung AEC | - |
| Montageart | Oberflächenmontage |
| Lieferantengeräteverpackung | 64-WLCSP (3,14x3,13) |
| Verpackung / Gehäuse | 64-UFBGA, WLCSP |
| ROHS |  |
Base Product Number ：
STM32L443RCI3
STM32L443RCI3.pdf
- Q: What is the operating voltage range of the STM32L443RCI3?
- A: It operates from 1.71V to 3.6V, supporting low-power battery applications.
- Q: Does this MCU include an LCD controller?
- A: Yes, it features an integrated LCD driver for direct segment display control.
- Q: What is the maximum core speed?
- A: The ARM Cortex-M4 core runs at up to 80 MHz.
- Q: What package is available?
- A: It comes in a 64-UFBGA (WLCSP) package, ideal for compact designs.
- Q: What is the temperature range?
- A: It is rated for -40°C to 125°C ambient operation.
×
