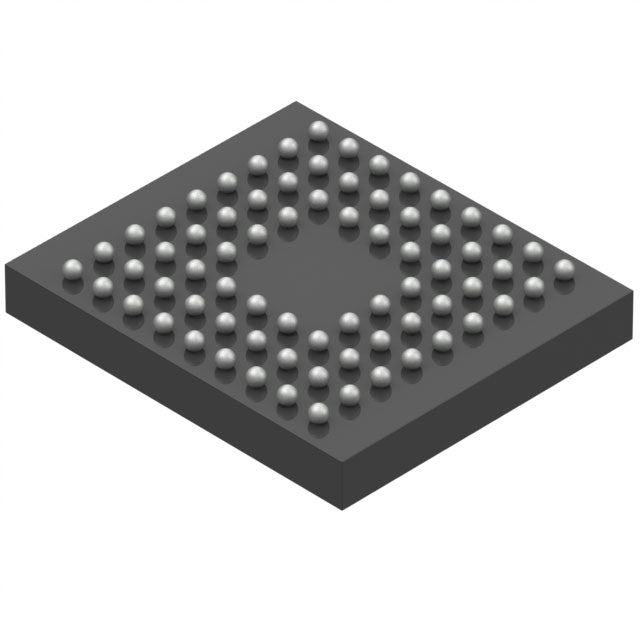

STMicroelectronics STM32L476JGY6PTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.62 | $20.62 |
| 15+ | $4.74 | $71.10 |
| 25+ | $4.64 | $116.00 |
| 50+ | $4.38 | $219.00 |
| 100+ | $3.86 | $386.00 |
| N+ | $0.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L4 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, PWM, WDT, (External SMPS Required) |
| Number of I/O | 57 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 72-WLCSP (4.41x3.76) |
| Package / Case | 72-UFBGA, WLCSP |
| ROHS |  |
The STM32L476JGY6PTR from STMicroelectronics is an ultra-low-power ARM Cortex-M4 microcontroller running at 80MHz. It offers 1MB flash and 128KB RAM, with an integrated LCD controller and DMA. Packaged in a 72-UFBGA or WLCSP, it operates from 1.71V to 3.6V, making it perfect for advanced portable and IoT applications.
- Ultra-Low Power: Optimized for battery-powered devices with multiple low-power modes.
- High Memory Capacity: 1MB flash for complex applications and data logging.
- Compact Packaging: WLCSP option saves PCB space in miniaturized designs.
- Rich Peripheral Set: Includes LCD, DMA, and multiple communication interfaces.
Wearable Devices
The ultra-low-power Cortex-M4 core and 1MB flash enable complex health monitoring algorithms in compact WLCSP packages.
Smart Displays
Integrated LCD controller and DMA support high-resolution segmented displays in smart home devices.
Industrial Sensors
With 80MHz performance and multiple analog peripherals, it handles precise data acquisition.
Medical Monitoring
Low power consumption and high memory capacity suit portable patient monitors.
IoT Edge Nodes
Its rich connectivity options and low-power modes make it ideal for battery-powered sensors.
Energy Harvesting
Operating down to 1.71V allows direct operation from energy harvesting sources.
- Q: What is the core processor of STM32L476JGY6PTR?
- A: It uses an ARM Cortex-M4 core at 80MHz.
- Q: How much flash memory is available?
- A: It has 1MB of flash memory.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: Does it support LCD?
- A: Yes, it has an integrated LCD controller.
- Q: What is the package type?
- A: It is available in a 72-UFBGA or WLCSP package.
