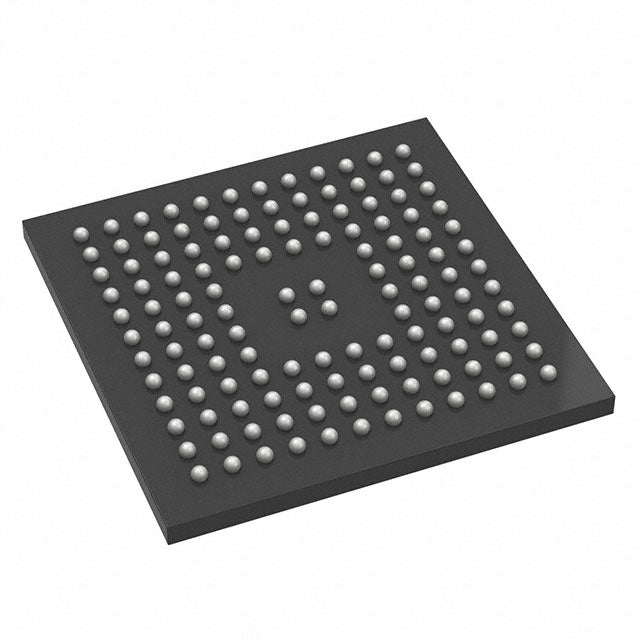

STMicroelectronics STM32U575QGI3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.48 | $23.48 |
| 15+ | $5.40 | $81.00 |
| 25+ | $5.28 | $132.00 |
| 50+ | $4.99 | $249.50 |
| 100+ | $4.40 | $440.00 |
| N+ | $0.88 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Bulk | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 110 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 784K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32U575QGI3 from STMicroelectronics is a high-performance microcontroller featuring an ARM Cortex-M33 core at 160MHz. It offers 1MB flash and 784KB RAM, operating from 1.71V to 3.6V. The 132-UFBGA package supports industrial temperature ranges (-40°C to 125°C), making it suitable for demanding embedded applications.
- High performance: 160MHz Cortex-M33 with DSP instructions for intensive tasks.
- Large memory: 1MB flash and 784KB RAM for complex applications.
- Wide voltage range: 1.71V to 3.6V enables flexible power design.
- Extended temperature: -40°C to 125°C for industrial environments.
- Rich peripherals: DMA, PWM, motor control, and watchdog for robust control.
Industrial IoT Gateways
With 160MHz Cortex-M33 and 1MB flash, it handles protocol stacks and edge processing efficiently.
Smart Meters
Low power modes and wide voltage range support long battery life and reliable operation.
Motor Control
Integrated PWM and motor control PWM features enable precise control of BLDC and PMSM motors.
Portable Medical Devices
High RAM (784KB) supports complex algorithms for signal processing while maintaining low power.
Security Systems
Cortex-M33 with TrustZone provides hardware isolation for secure boot and data protection.
Wearable Devices
Small 132-UFBGA package and 1.71V operation are ideal for compact, low-voltage designs.
- Q: What is the maximum operating frequency of the STM32U575QGI3?
- A: The STM32U575QGI3 runs at up to 160 MHz based on the ARM Cortex-M33 core.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V, suitable for battery-powered designs.
- Q: How much flash and RAM does it have?
- A: It provides 1MB flash and 784KB RAM.
- Q: What package is available?
- A: It comes in a 132-UFBGA package.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 125°C (TA).
