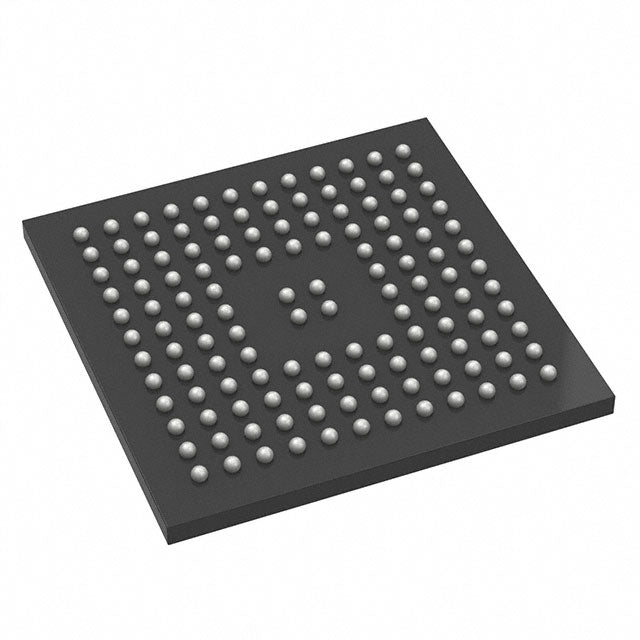

STMicroelectronics STM32U585QII6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.81 | $24.81 |
| 15+ | $5.70 | $85.50 |
| 25+ | $5.58 | $139.50 |
| 50+ | $5.27 | $263.50 |
| 100+ | $4.65 | $465.00 |
| N+ | $0.93 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Bulk | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 106 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 784K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32U585QII6 is a high-end microcontroller from STMicroelectronics, built on the ARM Cortex-M33 architecture. It operates at 160MHz and includes 2MB of flash memory and 784KB of RAM. The device is housed in a 132-UFBGA package and supports a supply voltage range of 1.71V to 3.6V. With an industrial temperature range and rich peripheral set, it is designed for advanced embedded applications.
- High Integration: Combines 2MB flash, 784KB RAM, and multiple peripherals in one chip.
- Reliable Operation: Brown-out reset and watchdog timer ensure system stability.
- Versatile Power: 1.71V to 3.6V range supports various power sources.
- Compact Footprint: 132-UFBGA saves PCB space for miniaturized products.
Smart Grid Infrastructure
High-speed ADC and robust communication peripherals support power line monitoring and distribution automation.
Medical Wearables
Low power consumption and small package enable continuous health monitoring in compact devices.
Automotive Aftermarket
Wide temperature range and motor control features suit aftermarket ECU and actuator controllers.
Industrial Networking
Ethernet and CAN interfaces (if available) combined with 2MB flash handle industrial protocol stacks.
Portable Test Equipment
High-speed processing and large RAM buffer support oscilloscope and logic analyzer functions.
Smart Agriculture
Low-power modes and sensor interfaces enable long-term field monitoring with solar power.
- Q: What is the operating temperature range?
- A: -40°C to 85°C (TA), suitable for industrial environments.
- Q: What is the RAM size?
- A: 784K x 8 (784KB) of SRAM.
- Q: Does it have a brown-out reset?
- A: Yes, it includes Brown-out Detect/Reset for reliable power monitoring.
- Q: What is the core speed?
- A: 160MHz maximum clock frequency.
- Q: What package is this?
- A: 132-UFBGA package.
