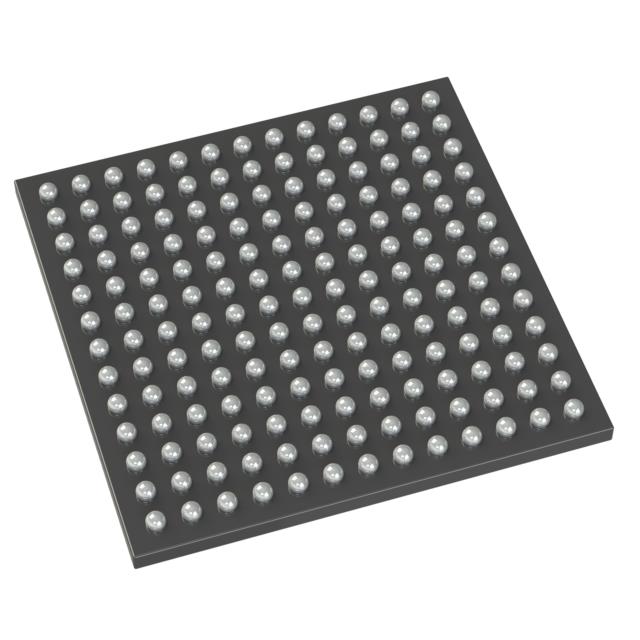

STMicroelectronics STM32U595AJH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $38.93 | $38.93 |
| 15+ | $8.95 | $134.25 |
| 25+ | $8.76 | $219.00 |
| 50+ | $8.27 | $413.50 |
| 100+ | $7.30 | $730.00 |
| N+ | $1.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 136 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2.5M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 169-TFBGA (7x7) |
| Package / Case | 169-TFBGA |
| ROHS |  |
The STM32U595AJH6 is an ultra-low-power MCU from STMicroelectronics. It features an ARM Cortex-M33 core at 160MHz, with 4MB flash and 2.5MB RAM. It includes an LCD controller, motor control PWM, and advanced security features. Operating from 1.71V to 3.6V, it is packaged in a 169-TFBGA, targeting high-performance IoT and HMI applications.
- Massive memory: 4MB flash and 2.5MB RAM for complex applications.
- Advanced security: Cortex-M33 TrustZone for secure code execution.
- Ultra-low power: 1.71V operation extends battery life.
- Rich graphics: Integrated LCD controller supports GUI.
High-End Wearables
The Cortex-M33 with TrustZone and 4MB flash supports secure, feature-rich smartwatches with graphical LCD interfaces.
Industrial HMI
Large memory and LCD controller enable rich user interfaces for factory automation panels.
Smart Home Hubs
Motor control PWM and DMA handle multiple peripherals, while the M33 core manages connectivity protocols.
Medical Monitoring
Low power modes and high RAM capacity support continuous patient data logging and analysis.
IoT Edge Nodes
With 160MHz and 2.5MB RAM, it runs ML inference locally for predictive maintenance.
Portable Instrumentation
The 1.71V operation and TFBGA package enable compact, battery-powered test equipment.
- Q: What is the core processor?
- A: It uses an ARM Cortex-M33 running at up to 160MHz.
- Q: How much flash memory does it have?
- A: It features 4MB of flash and 2.5MB of RAM.
- Q: Does it support LCD?
- A: Yes, it has an integrated LCD controller for graphical displays.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: What package is available?
- A: It comes in a 169-TFBGA package.
