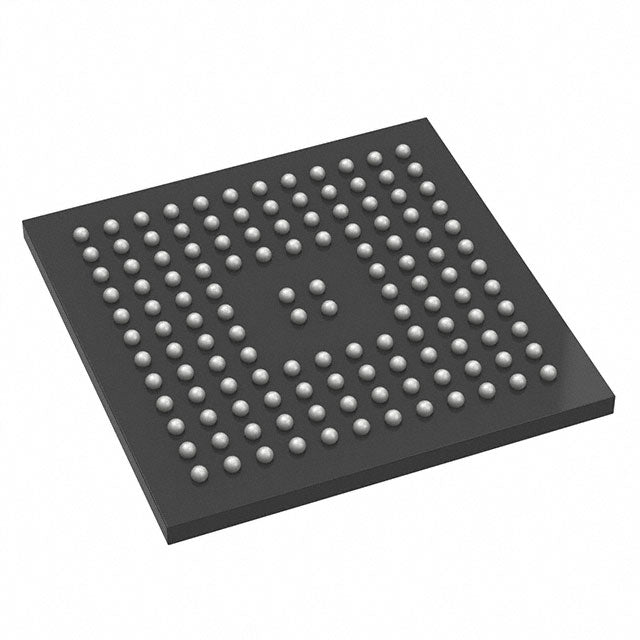

STMicroelectronics STM32U595QJI6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $37.81 | $37.81 |
| 15+ | $8.69 | $130.35 |
| 25+ | $8.51 | $212.75 |
| 50+ | $8.03 | $401.50 |
| 100+ | $7.09 | $709.00 |
| N+ | $1.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 110 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2.5M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32U595QJI6 is a high-performance, ultra-low-power microcontroller from STMicroelectronics. Powered by an ARM Cortex-M33 core at 160MHz, it offers 4MB flash and 2.5MB RAM for demanding applications. Its 1.71V to 3.6V supply range and integrated LCD controller make it perfect for battery-operated devices with graphical interfaces. The 132-UFBGA package provides a compact solution for advanced embedded systems.
- High Memory Density: 4MB flash and 2.5MB RAM support complex firmware and real-time data processing.
- Low Power Consumption: Optimized for battery life with multiple low-power modes and wide voltage range.
- Advanced Security: TrustZone technology provides hardware isolation for secure applications.
- Display Integration: On-chip LCD controller reduces external components and system cost.
Portable Medical Devices
Low 1.71V operation and 4MB flash support complex algorithms for glucose monitors and pulse oximeters.
Smart Displays
Integrated LCD controller and 2.5MB RAM enable smooth GUI animations without external memory.
Industrial Sensors
DMA and multiple timers handle high-speed data acquisition from temperature and pressure sensors.
Consumer Electronics
160MHz performance and rich peripherals support smart speakers and home automation controllers.
EV Charging Stations
Motor control PWM and robust communication interfaces manage power conversion and user interaction.
Security Systems
Cortex-M33 TrustZone and large flash enable secure boot and encrypted data storage.
- Q: What is the core architecture of STM32U595QJI6?
- A: It uses the ARM Cortex-M33 core with FPU and DSP instructions, running at 160MHz.
- Q: How much flash and RAM does it have?
- A: It provides 4MB of flash memory and 2.5MB of SRAM for large applications.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C, suitable for commercial and industrial environments.
- Q: Does it have a built-in LCD driver?
- A: Yes, it includes an LCD controller supporting various display sizes and resolutions.
- Q: What is the package type?
- A: It is available in a 132-pin UFBGA package.
