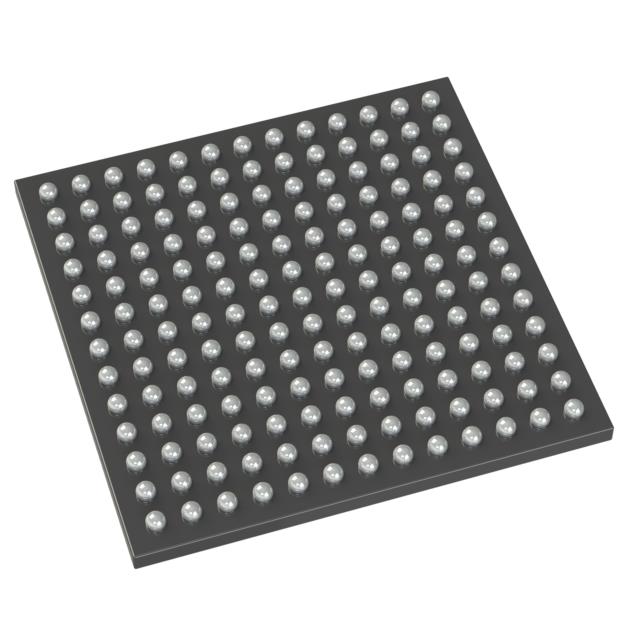

STMicroelectronics STM32U5A5AJH6
Normaler Preis
$39.50
Normaler Preis
$9.87
Verkaufspreis
$39.50
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $39.50 | $39.50 |
| 15+ | $9.08 | $136.20 |
| 25+ | $8.88 | $222.00 |
| 50+ | $8.39 | $419.50 |
| 100+ | $7.40 | $740.00 |
| N+ | $1.48 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, EBI/EMI, FIFO, I2C, IrDA, LINbus, MMC/SD, SPI, UART/USART/USB |
| Peripherals | Brown-out Detect/Reset, Crypto - AES, DMA, PWM, SHA, Temp Sensor, TRNG, WDT |
| Number of I/O | 136 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2.5M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 169-TFBGA (7x7) |
| Package / Case | 169-TFBGA |
| ROHS |  |
The STM32U5A5AJH6 is a secure, high-performance MCU from STMicroelectronics. It combines an ARM Cortex-M33 at 160MHz with 4MB flash and 2.5MB RAM. The 169-TFBGA package includes AES, SHA, TRNG, and a temp sensor, operating from 1.71V to 3.6V for advanced IoT and industrial applications.
- Integrated temp sensor for environmental monitoring.
- High-speed 160MHz with 2.5MB RAM for data-intensive tasks.
- Robust security suite (AES, SHA, TRNG).
- Wide voltage range for flexible power design.
Smart Meters
Secure communication with AES and low power for utility metering.
Medical Monitoring Devices
High RAM and temp sensor for patient vitals with reliable operation.
Industrial Sensors
DMA and PWM for precise sensor excitation and data acquisition.
Portable Instruments
Low voltage operation and 160MHz for fast, accurate measurements.
Edge AI Nodes
4MB flash for neural network models with Cortex-M33 DSP capabilities.
- Q: What is the operating temperature?
- A: -40°C to 85°C.
- Q: Does it have a temp sensor?
- A: Yes, integrated.
- Q: What is the RAM size?
- A: 2.5M x 8.
- Q: What voltage is supported?
- A: 1.71V to 3.6V.
Base Product Number ：
STM32U5A5AJH6
STM32U5A5AJH6.pdf
- Q: What is the operating temperature?
- A: -40°C to 85°C.
- Q: Does it have a temp sensor?
- A: Yes, integrated.
- Q: What is the RAM size?
- A: 2.5M x 8.
- Q: What voltage is supported?
- A: 1.71V to 3.6V.
×
