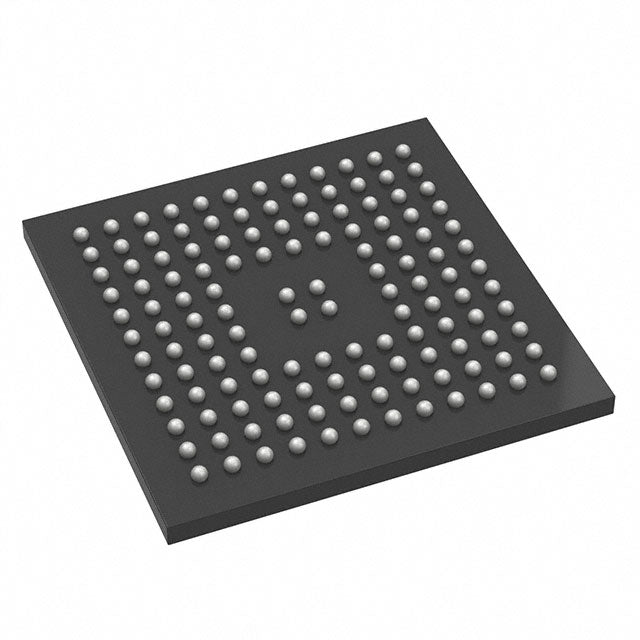

STMicroelectronics STM32U5A5QJI6Q
Normaler Preis
$38.37
Normaler Preis
$9.59
Verkaufspreis
$38.37
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $38.37 | $38.37 |
| 15+ | $8.82 | $132.30 |
| 25+ | $8.63 | $215.75 |
| 50+ | $8.15 | $407.50 |
| 100+ | $7.19 | $719.00 |
| N+ | $1.44 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, EBI/EMI, FIFO, I2C, IrDA, LINbus, MMC/SD, SPI, UART/USART/USB |
| Peripherals | Brown-out Detect/Reset, Crypto - AES, DMA, PWM, SHA, Temp Sensor, TRNG, WDT |
| Number of I/O | 106 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2.5M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 18x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32U5A5QJI6Q is a secure, high-performance MCU from STMicroelectronics. It features an ARM Cortex-M33 core running at 160MHz with 4MB flash and 2.5MB RAM. The 132-UFBGA package is ideal for space-constrained designs. Integrated AES, SHA, and TRNG provide robust security for connected applications.
- Robust security: AES/SHA/TRNG for data protection.
- High memory: 4MB flash + 2.5MB RAM.
- Wide voltage: 1.71V to 3.6V flexibility.
- Compact package: 132-UFBGA saves board space.
Secure Payment Terminals
Hardware crypto and TRNG meet PCI-PTS requirements.
Smart City Sensors
Low power and wide voltage range enable solar-powered deployments.
Edge AI Devices
2.5MB RAM supports small neural network inference.
Automotive Telematics
160MHz performance handles GPS and communication protocols.
Portable Medical Devices
Temp sensor and brown-out detection ensure patient safety.
Industrial IoT Controllers
4MB flash stores firmware and configuration data.
- Q: What is the difference from STM32U5A5QJI6?
- A: Same specs, different ordering code.
- Q: What is the core?
- A: ARM Cortex-M33 at 160MHz.
- Q: Flash size?
- A: 4MB.
- Q: Package?
- A: 132-UFBGA.
- Q: Security features?
- A: AES, SHA, TRNG.
Base Product Number ：
STM32U5A5QJI6Q
STM32U5A5QJI6Q.pdf
- Q: What is the difference from STM32U5A5QJI6?
- A: Same specs, different ordering code.
- Q: What is the core?
- A: ARM Cortex-M33 at 160MHz.
- Q: Flash size?
- A: 4MB.
- Q: Package?
- A: 132-UFBGA.
- Q: Security features?
- A: AES, SHA, TRNG.
×
