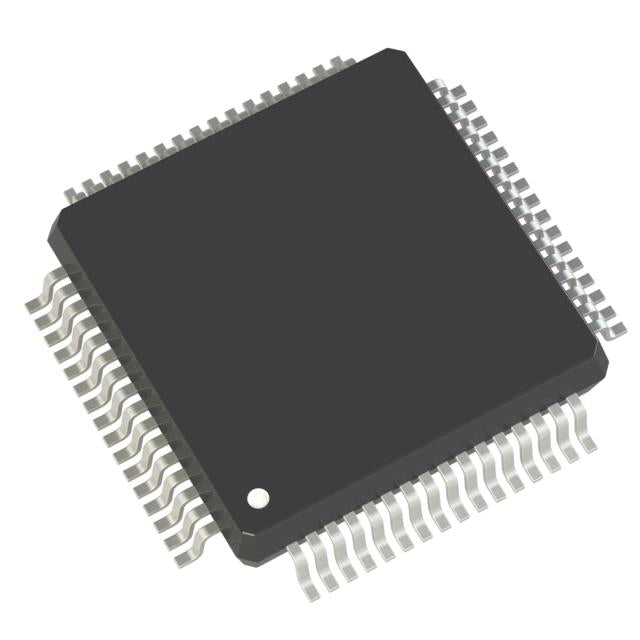

STMicroelectronics STM8AF6289TCY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.55 | $11.55 |
| 15+ | $2.66 | $39.90 |
| 25+ | $2.60 | $65.00 |
| 50+ | $2.46 | $123.00 |
| 100+ | $2.17 | $217.00 |
| N+ | $0.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8A |
| Packaging | Tray | NULL |
| Core Processor | STM8A |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM8AF6289TCY from STMicroelectronics is a robust 8-bit STM8A microcontroller. It operates at 24MHz with 64KB flash and 6KB RAM. Its 3V to 5.5V supply and -40°C to 125°C range make it ideal for automotive and industrial applications. The 64-LQFP package offers extensive I/O for complex control systems.
- Automotive Grade: 125°C operating temperature meets AEC-Q100 standards.
- High Voltage Tolerance: 5.5V supply simplifies direct connection to automotive power rails.
- Large Flash: 64KB supports complex firmware and calibration data.
- Rich I/O: 64-pin LQFP provides ample GPIO for multi-function control.
Automotive Body Control Module
The 125°C rating and 5.5V operation handle harsh under-hood environments for lighting and window control.
Industrial Motor Drive
With 24MHz speed and PWM, it can drive 3-phase induction motors in factory automation.
Engine Management Sensor Interface
Its robust temperature range and 64KB flash allow complex calibration tables for pressure/temperature sensors.
HVAC Blower Controller
The PWM output and wide voltage range make it ideal for variable-speed blowers in automotive HVAC.
Power Steering Assist
It can process torque sensor signals and control assist motors with high reliability.
Off-Road Vehicle Instrument Cluster
The 64-LQFP package provides enough I/O for gauges and indicator LEDs in rugged vehicles.
- Q: What is the core processor in the STM8AF6289TCY?
- A: It uses the STM8A 8-bit core running at up to 24MHz.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C, suitable for automotive.
- Q: How much flash memory is available?
- A: It has 64KB of program flash memory.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.5V.
- Q: What package is this offered in?
- A: It comes in a 64-pin LQFP package.
