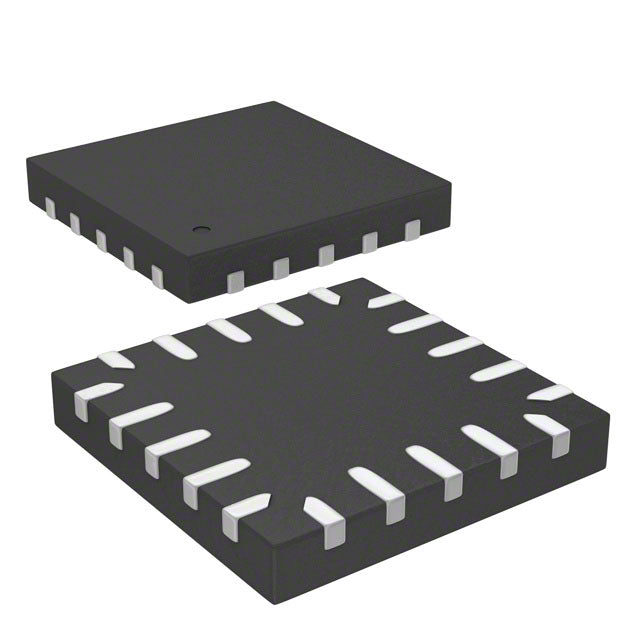

STMicroelectronics STM8L101F2U6ATR
Normaler Preis
$1.92
Normaler Preis
$1.37
Verkaufspreis
$1.92
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.92 | $1.92 |
| 15+ | $1.26 | $18.90 |
| 25+ | $1.23 | $30.75 |
| 50+ | $1.16 | $58.00 |
| 100+ | $1.03 | $103.00 |
| N+ | $0.21 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Produktmerkmale | Eigenschaftswert |
| Hersteller | STMicroelectronics |
| Produktserie | STM8L EnergyLite |
| Verpackung | Cut Tape (CT) | Tape & Reel (TR) |
| Kernprozessor | STM8 |
| Kerngröße | 8-Bit |
| Geschwindigkeit | 16MHz |
| Konnektivität | I2C, SPI, UART/USART |
| Peripheriegeräte | Infrarot, POR, PWM, WDT |
| Anzahl der I/O | 18 |
| Programmspeichergröße | 4KB (4K x 8) |
| Programmspeichertyp | FLASH |
| EEPROM-Größe | - |
| RAM-Größe | 1.5K x 8 |
| Spannung - Versorgung (Vcc/Vdd) | 1.65V ~ 3.6V |
| Datenwandler | - |
| Oszillatortyp | Intern |
| Betriebstemperatur | -40°C ~ 85°C (TA) |
| Klasse | - |
| AEC-Qualifizierung | - |
| Montageart | Oberflächenmontage |
| Lieferantengerätegehäuse | 20-UFQFPN (3x3) |
| Paket / Gehäuse | 20-UFQFN |
| ROHS |  |
Base Product Number ：
STM8L101F2
STM8L101F2U6ATR.pdf
- Q: What is the core architecture?
- A: It uses the STM8 core, running at up to 16MHz.
- Q: What is the memory size?
- A: It has 4KB Flash and 1.5KB RAM, suitable for simple applications.
- Q: What is the supply voltage range?
- A: It operates from 1.65V to 3.6V, optimized for low-power designs.
- Q: What package is available?
- A: It comes in a 20-pin UFQFN package, very compact for space-constrained PCBs.
- Q: Does it support infrared?
- A: Yes, it includes infrared modulation capabilities for remote control applications.
×
