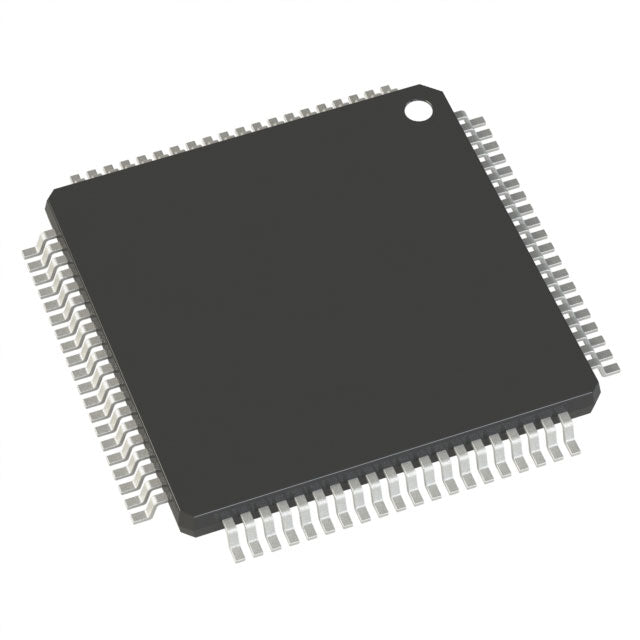

STMicroelectronics STM8L162M8T6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.43 | $9.43 |
| 15+ | $2.17 | $32.55 |
| 25+ | $2.12 | $53.00 |
| 50+ | $2.01 | $100.50 |
| 100+ | $1.77 | $177.00 |
| N+ | $0.35 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8L EnergyLite |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT |
| Number of I/O | 68 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 28x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-LQFP (14x14) |
| Package / Case | 80-LQFP |
| ROHS |  |
The STMicroelectronics STM8L162M8T6TR is a low-power 8-bit microcontroller based on the STM8 core, running at 16MHz. It provides 64KB of flash and 4KB of RAM, suitable for mid-range embedded applications. With a supply range of 1.8V to 3.6V, it is optimized for battery-powered devices. The device features an integrated LCD driver, IR, DMA, PWM, WDT, and brown-out detection, making it a versatile solution for consumer and industrial products. Its 80-pin LQFP package offers extensive connectivity options.
- Integrated LCD driver eliminates the need for external display controllers.
- Ultra-low-power STM8 core extends battery life in portable devices.
- IR module simplifies remote control design.
- 64KB flash provides ample storage for complex firmware.
LCD Display Modules
The integrated LCD driver supports segment displays in medical devices and industrial meters without external ICs.
Remote Control Transmitters
IR module and low power consumption make it ideal for TV and AC remote controls.
Smart Thermostats
64KB flash stores complex control algorithms and user settings for HVAC systems.
Portable Instrumentation
Low supply voltage (1.8V) and 4KB RAM enable battery-powered multimeters and thermometers.
Home Automation Panels
80-pin LQFP provides enough I/O for touch buttons, LEDs, and communication interfaces.
Data Loggers
DMA and WDT ensure reliable data capture in environmental monitoring systems.
- Q: What core does the STM8L162M8T6TR use?
- A: It uses the STM8 core running at up to 16MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V.
- Q: How much flash and RAM are available?
- A: It has 64KB of flash and 4KB of RAM.
- Q: What package is this device in?
- A: It comes in an 80-pin LQFP package.
- Q: Does it support LCD and IR?
- A: Yes, it includes LCD driver, IR, DMA, PWM, WDT, and brown-out detection.
