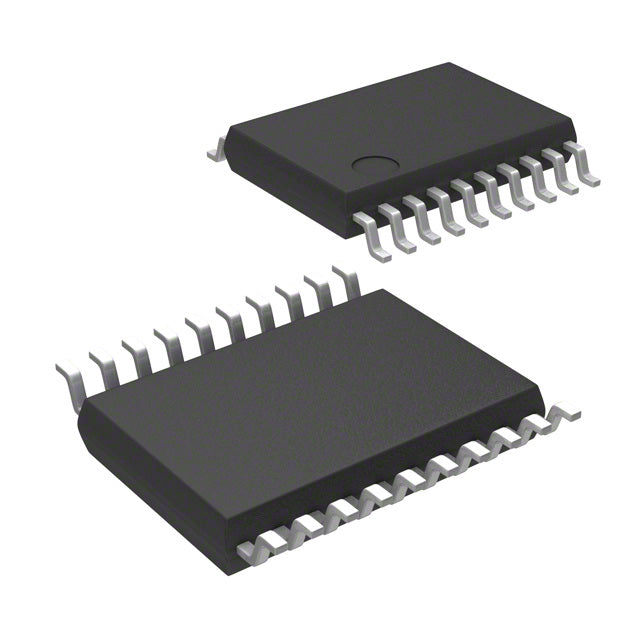

STMicroelectronics STM8S103F2P6
Normaler Preis
$2.10
Normaler Preis
$1.50
Verkaufspreis
$2.10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.10 | $2.10 |
| 15+ | $1.38 | $20.70 |
| 25+ | $1.35 | $33.75 |
| 50+ | $1.28 | $64.00 |
| 100+ | $1.13 | $113.00 |
| N+ | $0.23 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Tube | |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 640 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 5x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The STM8S103F2P6 from STMicroelectronics is an 8-bit MCU with a 16MHz STM8 core. It provides 4KB flash and 1KB RAM, operating from 2.95V to 5.5V. Housed in a 20-TSSOP package, it includes PWM, WDT, and brown-out detection for cost-effective embedded control.
- Wide voltage range: 2.95-5.5V simplifies power design in noisy environments.
- High integration: PWM, WDT, and POR reduce external components.
- Proven STM8 core: Reliable 8-bit performance at 16MHz.
- Industrial temperature range: -40°C to 85°C for harsh conditions.
- Compact TSSOP-20: Suitable for space-limited PCBs.
Industrial Control Panels
5V operation and 4KB flash handle relay logic and HMI interfaces in PLCs.
Automotive Body Electronics
Wide voltage tolerance and WDT ensure reliable window lift and mirror control.
Power Supply Management
PWM outputs regulate buck converters in AC-DC adapters and chargers.
Consumer Appliances
20-TSSOP package fits washing machine timers and microwave keypads.
Lighting Systems
16MHz speed enables DALI or DMX512 protocol in smart LED drivers.
Security Systems
Brown-out reset and POR maintain integrity in alarm panels and access readers.
