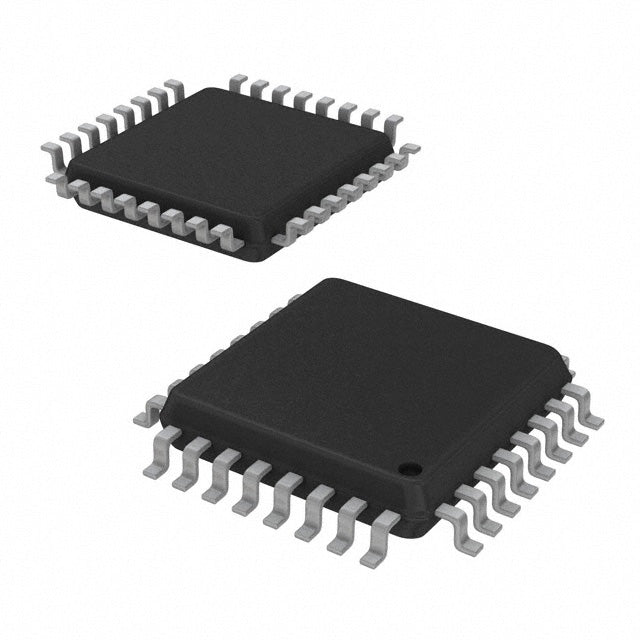

STMicroelectronics STM8S207K6T3CTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.52 | $7.52 |
| 15+ | $1.73 | $25.95 |
| 25+ | $1.69 | $42.25 |
| 50+ | $1.60 | $80.00 |
| 100+ | $1.41 | $141.00 |
| N+ | $0.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 32-LQFP |
| ROHS |  |
The STM8S207K6T3CTR from STMicroelectronics is an 8-bit MCU based on the STM8 core, running at 24MHz. It features 32KB flash and 6KB RAM, with a supply voltage range of 2.95V to 5.5V. Housed in a 32-LQFP package, it operates from -40°C to 125°C, making it a robust choice for automotive and industrial control applications.
- High-Temperature Operation (125°C): Suitable for under-hood automotive and industrial high-heat environments.
- 5V Tolerant I/O: Direct interface with legacy 5V sensors and actuators without level shifters.
- 24MHz STM8 Core: Efficient 8-bit performance for real-time control tasks.
- Robust Safety Features: Brown-out reset, POR, and WDT ensure reliable operation in noisy environments.
Automotive Body Electronics
With a 125°C operating temperature and 5V operation, it can control window lifts, mirror adjustments, and lighting modules in vehicles.
Industrial Motor Control
The 24MHz STM8 core with PWM outputs can drive small DC or stepper motors in conveyor belts or pumps, with WDT for safety.
Power Supply Management
Its 2.95V-5.5V range and POR/Brown-out detection make it ideal for monitoring and controlling switch-mode power supplies.
HVAC Systems
Reliable operation up to 125°C allows placement near compressors or heating elements for temperature sensing and fan control.
Smart Meters
The 32KB flash can store calibration data and communication protocols for utility metering, with low power consumption for battery backup.
White Goods Appliances
Robust I/O and 5V logic simplify interfacing with washing machine pumps, valves, and user interface buttons.
- Q: What is the core architecture of the STM8S207K6T3CTR?
- A: It uses the STM8 8-bit core running at up to 24MHz.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 125°C, suitable for automotive and industrial environments.
- Q: How much flash memory does it have?
- A: It provides 32KB of program flash memory.
- Q: What is the supply voltage range?
- A: It operates from 2.95V to 5.5V.
- Q: What package is this device available in?
- A: It comes in a 32-LQFP package.
