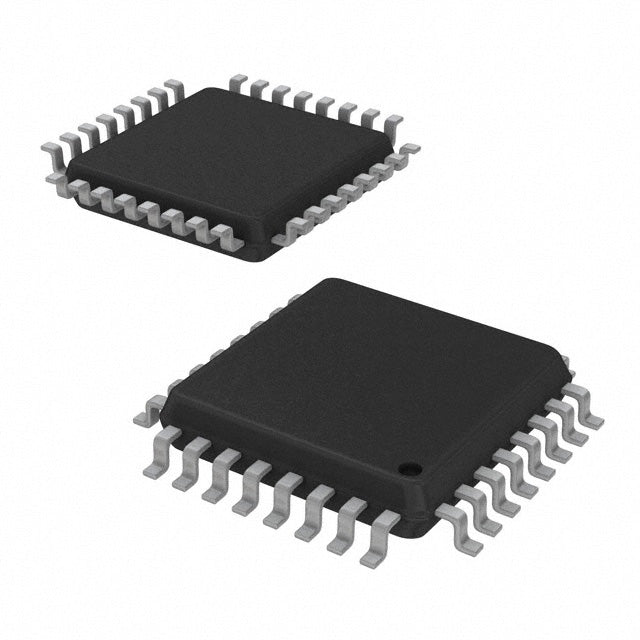

STMicroelectronics STM8S207K6T6CTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.31 | $4.31 |
| 15+ | $2.83 | $42.45 |
| 25+ | $2.77 | $69.25 |
| 50+ | $2.62 | $131.00 |
| 100+ | $2.31 | $231.00 |
| N+ | $0.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-LQFP (7x7) |
| Package / Case | 32-LQFP |
| ROHS |  |
The STMicroelectronics STM8S207K6T6CTR is a reliable 8-bit microcontroller for cost-sensitive applications. It features 32KB flash and 6KB RAM, providing ample space for control algorithms. Operating at 24MHz and 2.95V-5.5V, it balances performance with power efficiency. The 32-LQFP package is compact yet offers sufficient I/O. Integrated peripherals include PWM, WDT, and Brown-out Reset, ensuring dependable operation in industrial and consumer environments.
- Wide voltage range (2.95V-5.5V): Compatible with both 3.3V and 5V systems.
- High-speed 24MHz core: Fast execution for real-time control.
- Compact 32-LQFP: Saves PCB space in space-limited designs.
- Robust safety features: BOR and WDT prevent system failures.
- Cost-effective: Ideal for high-volume consumer products.
Consumer Appliances
The 5V operation and robust PWM make it ideal for motor control in blenders and fans.
Industrial Sensors
With WDT and BOR, it provides reliable operation in 4-20mA loop-powered transmitters.
Automotive Aftermarket
The -40°C to 85°C range suits car alarm systems and window controllers.
Power Tools
High-speed PWM and 24MHz core enable efficient brushless motor commutation.
Smart Home Devices
Low pin count and small package fit into smart plugs and light switches.
Battery Management
Voltage monitoring and WDT ensure safe charging/discharging in portable electronics.
- Q: What is the core of the STM8S207K6T6CTR?
- A: It uses the STM8 8-bit core running at up to 24MHz.
- Q: What is the flash memory size?
- A: It has 32KB of program flash memory.
- Q: What is the supply voltage range?
- A: It operates from 2.95V to 5.5V.
- Q: What package is this available in?
- A: It comes in a 32-LQFP package.
