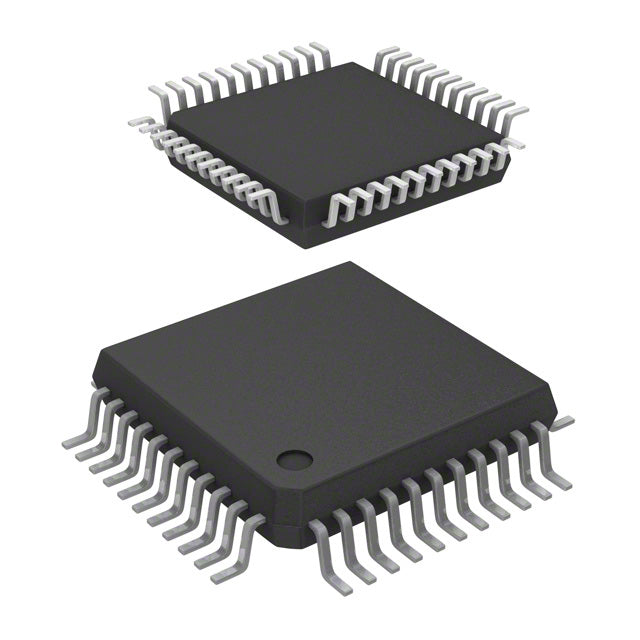

STMicroelectronics STM8S207SBT3C
Normaler Preis
$10.06
Normaler Preis
$2.51
Verkaufspreis
$10.06
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.06 | $10.06 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Tray | NULL |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 9x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-LQFP (10x10) |
| Package / Case | 44-LQFP |
| ROHS |  |
The STM8S207SBT3C from STMicroelectronics is an 8-bit MCU with 128KB flash and 6K RAM. It runs at 24MHz, operates from 2.95V to 5.5V, and comes in a 44-LQFP package with BOR, POR, PWM, and WDT.
- 128KB flash: Large code space for complex applications.
- Extended temperature (-40°C to 125°C): Suitable for harsh automotive environments.
- 5V tolerant I/O: Direct interface with legacy peripherals.
- Integrated BOR and POR: Reliable power management.
Automotive ECU Auxiliary
125°C rating and 128KB flash support engine bay sensors; BOR ensures stable reset.
Industrial Drives
24MHz and 6K RAM handle field-oriented control for small motors; PWM outputs drive inverters.
Smart Home Gateways
44-LQFP with 5V tolerance simplifies interfacing with legacy 5V sensors.
Power Tools
High temperature and robust WDT protect against vibration-induced glitches.
Medical Monitoring
128KB flash stores patient logs; 2.95V min voltage supports battery operation.
Solar Inverters
Wide voltage range and BOR handle grid fluctuations; 24MHz for MPPT algorithms.
- Q: What is the core architecture?
- A: STM8 8-bit core running at 24MHz.
- Q: How much flash memory?
- A: 128KB, suitable for complex firmware.
- Q: What is the temperature range?
- A: -40°C to 125°C, ideal for automotive.
- Q: Does it have brown-out detection?
- A: Yes, integrated BOR and POR.
Base Product Number ：
STM8S207SBT3C
