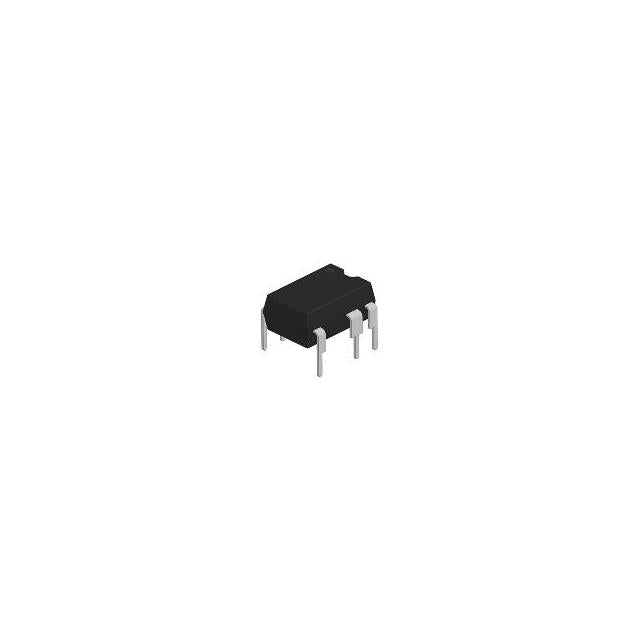

Sanken Electric USA Inc. STR6A153MV

STR6A153MV - High-Performance Flyback AC/DC Converter IC

The STR6A153MV from Sanken Electric is a robust 40W flyback AC/DC converter IC designed for isolated power supply applications in industrial, consumer, and telecommunications equipment. Featuring integrated switching with 650V breakdown voltage and comprehensive fault protection, this converter delivers reliable performance across demanding operating conditions.

Key Features & Benefits

• 40W Power Output: Ideal for mid-range power supply designs in set-top boxes, adapters, and industrial controls
• 650V High Breakdown Voltage: Ensures safe operation with wide input voltage range and excellent surge protection
• 65kHz Switching Frequency: Optimized for compact transformer design and reduced EMI
• Comprehensive Protection: Built-in current limiting, over-load, over-temperature, and over-voltage protection safeguards your system
• Soft Start Control: Minimizes inrush current and extends component lifespan
• Wide Operating Range: Functions reliably from -40°C to 125°C for harsh environments
• RoHS Compliant: Meets environmental standards for global distribution

Applications

• AC/DC power adapters and chargers
• Set-top boxes and consumer electronics
• Industrial control systems
• Telecommunications equipment
• LED lighting drivers
• Auxiliary power supplies

Design Support

Full technical documentation, reference designs, and application notes are available. Our engineering team provides design-in support to help you optimize your power supply topology for efficiency, thermal performance, and regulatory compliance.

Part Number: STR6A153MV | Package: 8-DIP Through-Hole | RoHS: Compliant

• STR6A153MV.pdf
