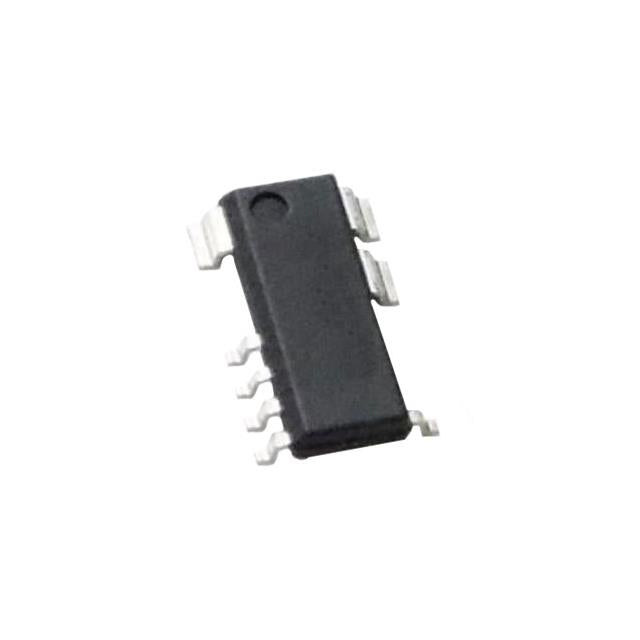

Sanken Electric USA Inc. STR6S161HXD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 13.19 | Dhs. 13.19 |
| 15+ | Dhs. 12.79 | Dhs. 191.85 |
| 25+ | Dhs. 12.51 | Dhs. 312.75 |
| 50+ | Dhs. 11.82 | Dhs. 591.00 |
| 100+ | Dhs. 10.43 | Dhs. 1,043.00 |
| N+ | Dhs. 2.09 | Price Inquiry |
Request Quote / Inquiry
STR6S161HXD - High-Performance Flyback AC/DC Converter IC
The STR6S161HXD from Sanken Electric is a robust, isolated flyback AC/DC converter IC designed for high-reliability applications in aerospace, automotive, industrial, medical, and telecommunications sectors. This integrated power management solution delivers 33.5W of power with comprehensive protection features and excellent thermal performance.
Key Features & Benefits
- High Voltage Capability: 700V breakdown voltage for demanding applications
- Efficient Power Delivery: 33.5W output power with 100kHz switching frequency
- Wide Operating Range: 8.5V to 32V supply voltage, -40°C to 125°C operating temperature
- Comprehensive Protection: Current limiting, over-load, over-temperature, and over-voltage protection
- Advanced Control: Frequency control and soft-start features for reliable operation
- Compact Design: Surface mount 16-SOIC package for space-efficient layouts
- RoHS Compliant: Environmentally friendly, meets global compliance standards
Typical Applications
Ideal for isolated power supplies in industrial control systems, medical equipment, telecommunications infrastructure, automotive electronics, and aerospace instrumentation where reliability and long lifecycle availability are critical.
Design Support
Full technical documentation, datasheets, and reference designs available to support your design-in process. Our engineering team provides application support for optimal integration.
Quality & Compliance
All products ship with full traceability documentation and comply with RoHS/REACH regulations. Available in bulk packaging options (tray, bulk) with global shipping to support production-scale sourcing.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 32V |
| Duty Cycle | 75% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 33.5 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
STR6S161HXD.pdf
