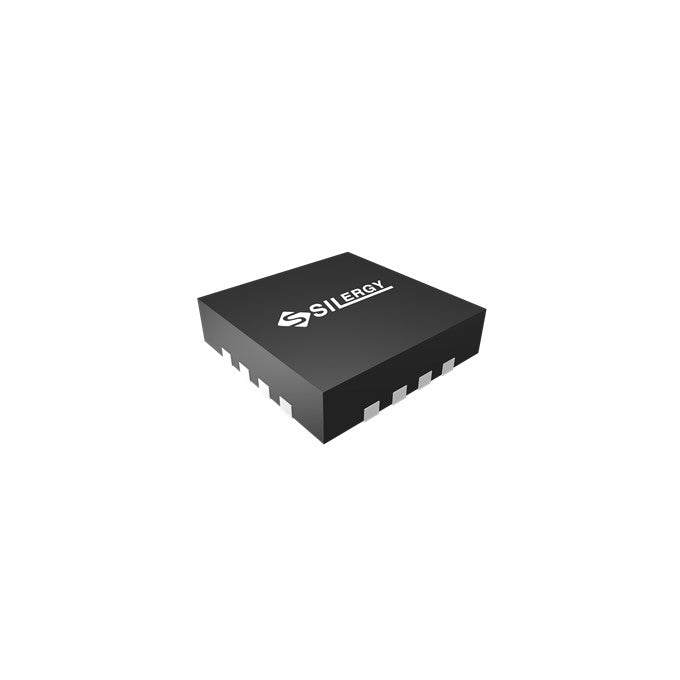

Silergy Technology SY20763QDC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.02 | $7.02 |
| 15+ | $1.61 | $24.15 |
| 25+ | $1.58 | $39.50 |
| 50+ | $1.49 | $74.50 |
| 100+ | $1.31 | $131.00 |
| N+ | $0.26 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Silergy Technology |
| Product Series | - |
| Packaging | Strip | |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 3 |
| Current - Charging | Constant |
| Programmable Features | Current, Timer, Voltage |
| Fault Protection | - |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 13.05V (Max) |
| Voltage - Supply (Max) | 16V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-QFN (3x3) |
| Supplier Device Package | - |
| ROHS |  |
The SY20763QDC is a linear battery charger for 3-cell Lithium Ion/Polymer battery packs. It provides up to 1A charge current with a maximum battery voltage of 13.05V. Designed for reliable operation from -40°C to 85°C, it comes in a compact 16-QFN (3x3) package suitable for various portable and industrial applications.
- Multi-cell support: Charges 3-cell Li-Ion packs for higher voltage applications.
- Compact design: 16-QFN (3x3) package saves PCB space.
- Wide temperature range: Operates from -40°C to 85°C for industrial use.
- Simple integration: Linear charger design simplifies external circuitry.
Three-Cell Power Tools
Charge 3-cell Li-Ion packs in cordless drills and saws with a reliable 1A charger.
Portable Medical Devices
Power battery-operated medical monitors that require a 3-cell pack and operate in controlled environments.
Industrial Sensors
Support 3-cell battery systems in industrial equipment where wide temperature operation is needed.
Consumer Robotics
Charge 3-cell packs in robotic vacuum cleaners or toys with a compact 16-QFN package.
LED Lighting Systems
Provide charging for portable or backup lighting systems using 3-cell Li-Ion batteries.
- Q: What battery chemistry does the SY20763QDC support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It supports 3 cells.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the battery pack voltage?
- A: The maximum battery voltage is 13.05V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What is the package type?
- A: It comes in a 16-QFN (3x3) package.
SY20763QDC.pdf
