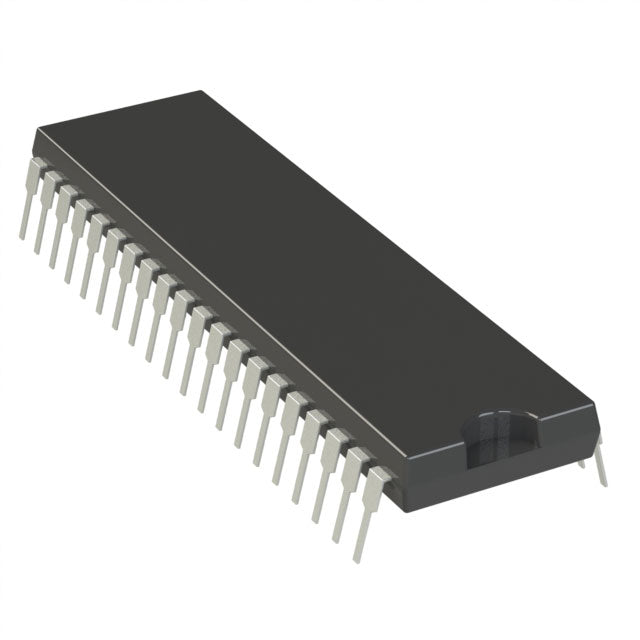

Microchip Technology TC7109ACPL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.67 | $13.67 |
| 15+ | $13.24 | $198.60 |
| 25+ | $12.95 | $323.75 |
| 50+ | $12.23 | $611.50 |
| 100+ | $10.79 | $1,079.00 |
| N+ | $2.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 30 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Dual Slope |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 40-DIP (0.600", 15.24mm) |
| Supplier Device Package | 40-PDIP |
| ROHS |  |
The TC7109ACPL from Microchip Technology is a 12-bit integrating analog-to-digital converter designed for high-accuracy, low-speed applications. It samples at 30 SPS and features a single input channel with an external reference for precise voltage scaling. The parallel interface provides straightforward connectivity to microprocessors and digital systems. Housed in a robust 40-pin DIP package, it operates over a commercial temperature range of 0°C to 70°C, making it an excellent choice for precision measurement instruments, industrial scales, and laboratory equipment.
- High Accuracy: 12-bit integrating architecture delivers excellent linearity and noise rejection for precision measurements.
- Simple Parallel Interface: Easy connection to microcontrollers and digital buses without complex serial protocols.
- External Reference Flexibility: Allows users to set custom voltage ranges for diverse applications.
- Robust DIP Package: 40-pin DIP is easy to handle and solder in through-hole PCB designs.
- Stable Low-Speed Operation: 30 SPS sampling is ideal for slowly varying signals requiring high resolution.
Precision Measurement Instruments
The 12-bit resolution and 30 SPS sampling rate make the TC7109ACPL ideal for digital multimeters and precision panel meters requiring stable, accurate readings.
Industrial Weigh Scales
Its integrating architecture provides excellent noise rejection, making it suitable for load cell and strain gauge signal conditioning in industrial scales.
Laboratory Data Logging
With external reference support and parallel output, this ADC is perfect for laboratory data acquisition systems that require high accuracy over speed.
Temperature Monitoring Systems
The 0°C to 70°C operating range and high resolution enable precise temperature measurement in environmental monitoring equipment.
Battery Monitoring
Low-speed, high-accuracy conversion is well-suited for battery voltage and current monitoring in charging systems and power management.
Process Control Transmitters
The parallel interface simplifies connection to microprocessors in industrial process control transmitters for analog signal digitization.
- Q: What type of ADC is the TC7109ACPL?
- A: The TC7109ACPL is a 12-bit integrating analog-to-digital converter.
- Q: What is the resolution of the TC7109ACPL?
- A: It provides 12-bit resolution.
- Q: What is the sampling rate of the TC7109ACPL?
- A: The maximum sampling rate is 30 SPS (samples per second).
- Q: How many channels does the TC7109ACPL have?
- A: It has a single (1) input channel.
- Q: What interface does the TC7109ACPL use?
- A: It features a parallel digital interface.
- Q: What is the package type?
- A: It comes in a 40-pin DIP package (0.600" width).
