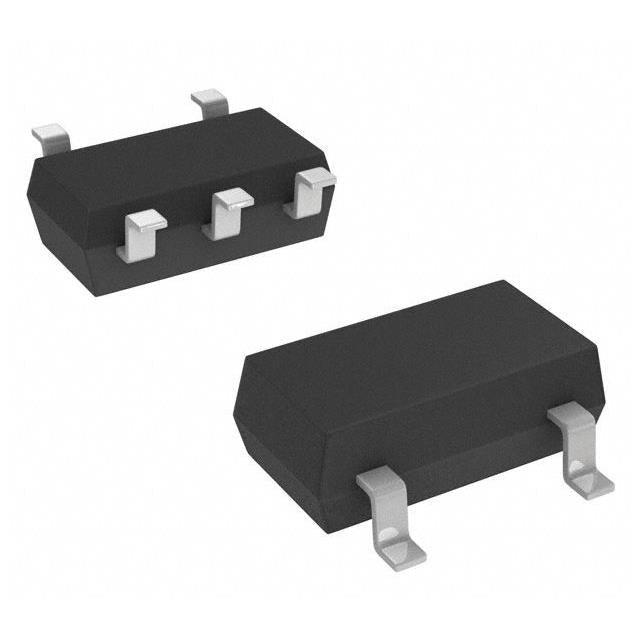

Toshiba Semiconductor and Storage TCR3DF36,LM(CT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.43 | $0.43 |
| 15+ | $0.41 | $6.15 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.38 | $19.00 |
| 100+ | $0.34 | $34.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Toshiba Semiconductor and Storage |
| Product Series | TCR3DF |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.22V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| PSRR | 70dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SMV |
| ROHS |  |
The TCR3DF36 from Toshiba is a fixed 3.6V LDO regulator offering 300mA output current. With a low dropout of 0.22V at full load and a PSRR of 70dB at 1kHz, it ensures clean, stable power for sensitive electronics. The compact SMV package makes it suitable for space-constrained portable applications.
- Low dropout (0.22V): Maximizes efficiency in battery-powered designs.
- High PSRR (70dB): Superior noise filtering for RF and analog circuits.
- 300mA output: Supports moderate power loads.
- Compact SMV package: Ideal for miniaturized devices.
Smartphones & Tablets
Powers low-voltage digital cores with 300mA capability and 70dB PSRR, ensuring stable operation during RF transmission.
Wearable Devices
Regulates 3.6V for sensors and MCUs, with low dropout to maximize battery utilization.
IoT Modules
Provides clean power to wireless SoCs, reducing noise-induced errors in communication.
Portable Medical Devices
Delivers reliable 3.6V for monitoring equipment, with high PSRR for patient safety.
Battery-Powered Peripherals
Maintains regulation even as battery voltage drops, extending operational life.
Camera Modules
Supplies stable voltage to image sensors, improving image quality by reducing power noise.
- Q: What is the output voltage of the TCR3DF36?
- A: It provides a fixed 3.6V output.
- Q: What is the maximum output current?
- A: It can supply up to 300mA.
- Q: What is the input voltage range?
- A: Input voltage should be between 3.8V and 5.5V for proper regulation.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.22V at 300mA load.
- Q: What is the PSRR?
- A: PSRR is 70dB at 1kHz, providing excellent noise rejection.
- Q: What package is available?
- A: It comes in an SMV package.
