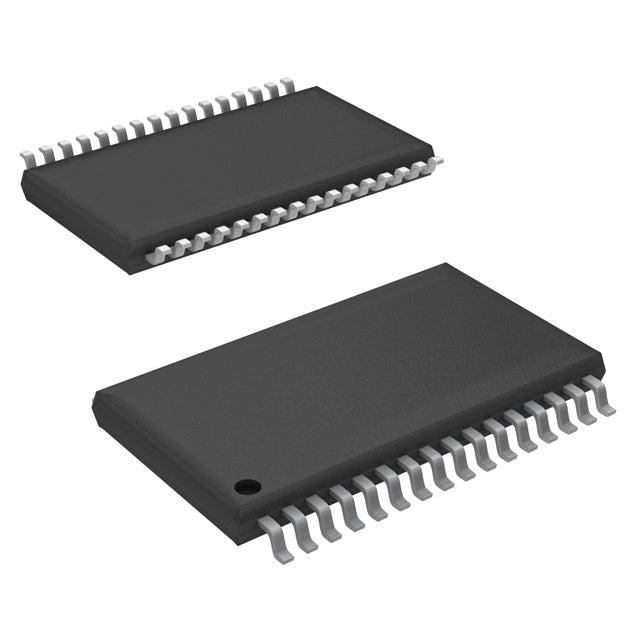

Texas Instruments THS1207IDA
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $95.74 | $95.74 |
| 15+ | $22.02 | $330.30 |
| 25+ | $21.55 | $538.75 |
| 50+ | $20.35 | $1,017.50 |
| 100+ | $17.96 | $1,796.00 |
| N+ | $3.59 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 6M |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-MUX-ADC |
| Ratio - S/H:ADC | 4:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-TSSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 32-TSSOP |
| ROHS |  |
The THS1207IDA is a 12-bit analog-to-digital converter with a sampling rate of 6M SPS. It features a multiplexed input stage that supports 2 or 4 channels, allowing for flexible multi-signal acquisition. The device includes both external and internal reference options and provides a parallel interface for data output. Operating over an extended temperature range of -40°C to 85°C, it is housed in a 32-TSSOP package, making it suitable for demanding industrial applications.
- Extended Temperature Range: Operates from -40°C to 85°C, ideal for industrial environments.
- Multi-Channel Flexibility: Supports 2 or 4 channels, reducing system complexity.
- High-Speed Sampling: 6M SPS ensures accurate capture of fast signals.
- Dual Reference Options: Internal or external reference provides design flexibility.
Industrial Control Systems
The extended temperature range (-40°C to 85°C) makes it suitable for industrial control systems in harsh environments.
Multi-Sensor Monitoring
With 4 input channels, it can simultaneously monitor multiple sensors in factory automation and process control.
Power Quality Analysis
The high sampling rate and 12-bit resolution enable accurate analysis of power quality in three-phase systems.
Vibration Analysis
It can digitize vibration signals from multiple accelerometers for predictive maintenance applications.
Embedded Data Loggers
The parallel interface and compact TSSOP package make it ideal for embedded data logging systems.
- Q: What is the THS1207IDA?
- A: It is a 12-bit, 6M SPS ADC with a multiplexed input supporting 2 or 4 channels.
- Q: What is the resolution?
- A: The resolution is 12 bits.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 6M SPS.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C, making it suitable for industrial environments.
- Q: What package is it available in?
- A: It comes in a 32-TSSOP package.
THS1207IDA.pdf
- Q: What is the THS1207IDA?
- A: It is a 12-bit, 6M SPS ADC with a multiplexed input supporting 2 or 4 channels.
- Q: What is the resolution?
- A: The resolution is 12 bits.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 6M SPS.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C, making it suitable for industrial environments.
- Q: What package is it available in?
- A: It comes in a 32-TSSOP package.
