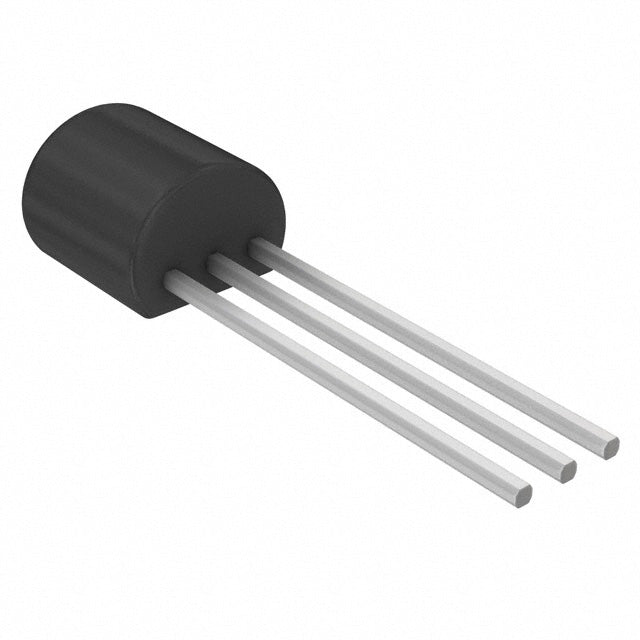

Texas Instruments TL317CLP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.53 | $2.53 |
| 15+ | $2.45 | $36.75 |
| 25+ | $2.39 | $59.75 |
| 50+ | $2.26 | $113.00 |
| 100+ | $2.00 | $200.00 |
| N+ | $0.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Bulk |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 38V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 32V |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| PSRR | 65dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 |
| ROHS |  |
The TL317CLP from Texas Instruments is a versatile adjustable linear regulator delivering up to 100mA with an output range to 32V. Its low 1.2V input threshold enables operation from minimal supply rails. The TO-92-3 package is ideal for compact, through-hole designs. With 65dB PSRR at 120Hz, it provides clean power for sensitive analog circuits.
- Wide Adjustable Output: Output up to 32V provides design flexibility for various voltage requirements.
- Low Input Operation: Operates from 1.2V input, enabling battery-powered and low-voltage applications.
- Good Ripple Rejection: 65dB PSRR at 120Hz reduces AC ripple for cleaner output.
- Compact TO-92 Package: Small footprint suits space-constrained designs.
Adjustable Power Supplies
Use the TL317CLP to create a simple adjustable bench power supply. Its 1.2V minimum input and 32V output range allow flexible voltage generation for prototyping and testing.
Battery-Powered Devices
With a low 1.2V input capability, this regulator can operate from single-cell batteries, providing a stable output for low-power sensors and microcontrollers.
Reference Voltage Source
The adjustable output makes it ideal as a precision reference for ADC circuits or comparator thresholds, ensuring accurate measurements.
Audio Preamplifier Supply
Its 65dB PSRR at 120Hz helps reject mains hum, making it suitable for powering low-noise audio preamplifier stages.
Portable Instrumentation
The 100mA output is sufficient for op-amps and small displays in handheld meters, while the TO-92 package minimizes board space.
- Q: What is the output voltage range of the TL317CLP?
- A: The TL317CLP provides an adjustable output voltage up to 32V.
- Q: What is the maximum output current?
- A: The maximum output current is 100mA.
- Q: What is the input voltage range?
- A: The input voltage range starts from 1.2V, allowing low-voltage operation.
- Q: What is the dropout voltage?
- A: Dropout voltage is not specified in the provided technical data.
- Q: What is the quiescent current?
- A: Quiescent current is not specified in the provided technical data.
- Q: What package is the TL317CLP available in?
- A: It comes in a TO-92-3 package, suitable for through-hole mounting.
