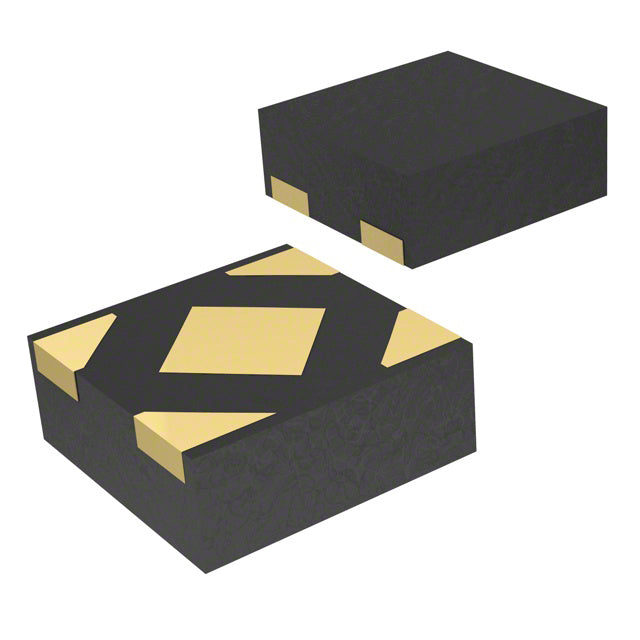

Texas Instruments TLV70710DQNT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.79 | $0.79 |
| 15+ | $0.76 | $11.40 |
| 25+ | $0.75 | $18.75 |
| 50+ | $0.71 | $35.50 |
| 100+ | $0.62 | $62.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.36V @ 150mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| PSRR | 70dB ~ 50dB (100Hz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-X2SON (1x1) |
| ROHS |  |
The TLV70710DQNT from Texas Instruments is a fixed 1V LDO regulator with 200mA output capability. Featuring an ultra-low 50 µA quiescent current and high PSRR, it is designed for power-sensitive applications. The 4-X2SON (1x1) package is one of the smallest available, ideal for miniaturized electronics.
- Ultra-Low Quiescent Current: 50 µA extends battery life significantly.
- High-Frequency Noise Rejection: 50dB PSRR at 1MHz for RF-sensitive circuits.
- Minute Package: 1x1mm X2SON saves critical board space.
- Low Dropout: 0.36V at 150mA improves efficiency.
Low-Voltage Digital Logic
Provides a precise 1V rail for advanced low-power microcontrollers and logic ICs.
Energy Harvesting Systems
Ultra-low 50 µA quiescent current maximizes efficiency in energy-scavenging applications.
Portable Medical Monitors
Stable 1V output for sensitive biosignal processing circuits, with high PSRR.
Wireless Sensor Nodes
Compact 1x1mm package and low dropout enable dense, battery-powered designs.
FPGA Core Voltage
Supplies 1V core voltage for FPGAs, with 200mA for moderate logic loads.
Smart Cards and Readers
Reliable 1V supply for secure element ICs, ensuring consistent operation.
- Q: What is the output voltage?
- A: The fixed output voltage is 1V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA.
- Q: What is the dropout voltage?
- A: Dropout is 0.36V at 150mA.
- Q: What is the quiescent current?
- A: Quiescent current is 50 µA.
- Q: What package is available?
- A: It comes in a 4-X2SON (1x1) package.
- Q: What is the PSRR?
- A: PSRR is 70dB at 100Hz and 50dB at 1MHz.
