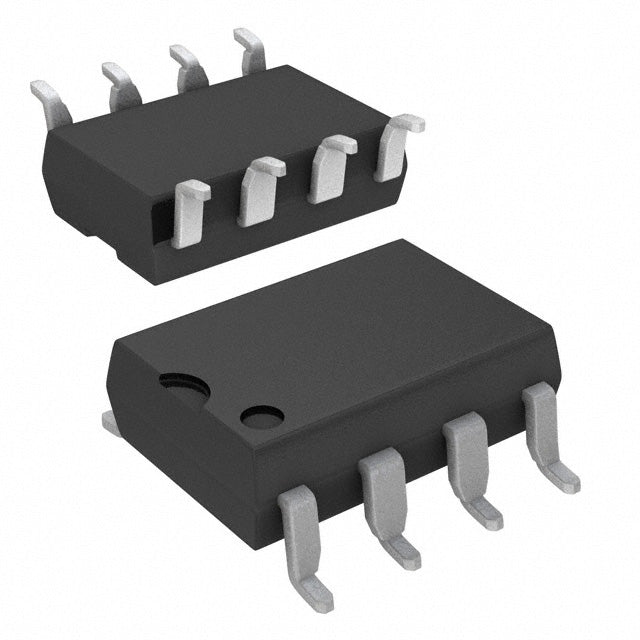

Power Integrations TOP223G-TL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TOPSwitch®-II |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Boost, Buck, Flyback, Forward |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 67% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 25 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
TOP223G-TL - TOPSwitch-II Offline Switcher IC
The TOP223G-TL from Power Integrations is a high-performance offline switcher IC from the TOPSwitch-II family, designed for reliable AC-DC power conversion applications up to 25W. This integrated solution combines a 700V power MOSFET with advanced control circuitry, offering exceptional efficiency and comprehensive protection features.
Key Features & Benefits
- Versatile Topology Support: Compatible with flyback, buck, boost, and forward converter designs
- High Voltage Capability: 700V breakdown voltage for universal input applications
- Integrated Protection: Built-in current limiting and over-temperature protection
- Compact Design: 8-SMD surface mount package saves board space
- Fixed Frequency Operation: 100kHz switching frequency for predictable EMI performance
- Wide Operating Range: -40°C to 150°C junction temperature rating
Typical Applications
- AC-DC power supplies and adapters
- Standby power supplies
- Auxiliary power supplies
- Battery chargers
- Consumer electronics
- Industrial control systems
Why Choose TOP223G-TL?
The TOP223G-TL offers designers a proven, cost-effective solution for offline power conversion with minimal external components. Its integrated approach reduces design complexity, improves reliability, and accelerates time-to-market for your power supply designs. Backed by Power Integrations' reputation for quality and long-term product availability, this IC is ideal for applications requiring robust performance and extended lifecycle support.
