Power Integrations TOP224G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TOPSwitch®-II |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Boost, Buck, Flyback, Forward |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 67% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 30 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |

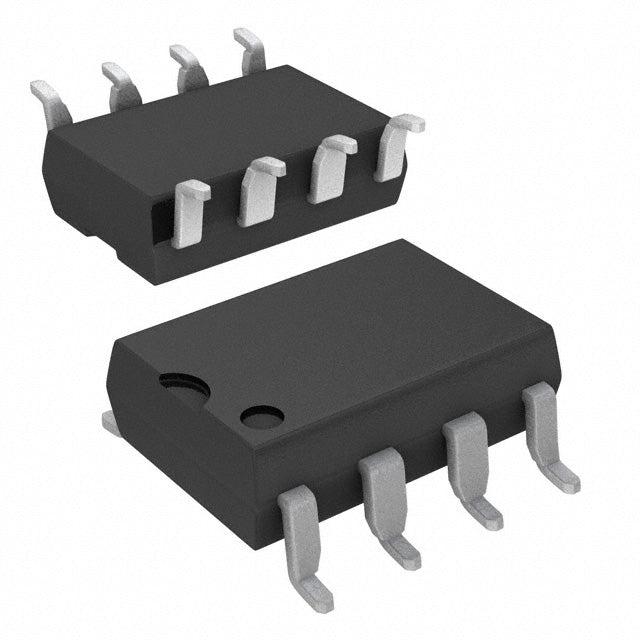

TOP224G - TOPSwitch-II Offline Switching IC
The TOP224G is a high-performance offline switcher IC from Power Integrations' TOPSwitch-II family, designed for cost-effective, reliable AC/DC power conversion up to 30W. This integrated solution combines a 700V power MOSFET, PWM control, fault protection, and other control circuitry on a single chip, significantly reducing component count and design complexity.
Key Features & Benefits
- Integrated 700V Power MOSFET - High voltage capability for universal input applications
- 30W Power Output - Suitable for a wide range of low to medium power applications
- Multiple Topology Support - Works with Boost, Buck, Flyback, and Forward converter designs
- 100kHz Switching Frequency - Enables compact transformer and filter designs
- Built-in Protection - Current limiting and over-temperature protection enhance reliability
- 67% Maximum Duty Cycle - Optimized for efficient power conversion
- Wide Operating Temperature Range - -40°C to 150°C (TJ) for demanding environments
- Surface Mount Package - 8-SMD gull wing design for automated assembly
Typical Applications
- AC/DC power supplies for consumer electronics
- Standby power supplies
- Auxiliary power supplies
- Battery chargers
- Industrial control systems
- Telecommunications equipment
Why Choose TOP224G?
The TOP224G simplifies power supply design by integrating critical functions into a single, reliable component. Its comprehensive protection features ensure long-term reliability, while the surface mount package facilitates high-volume manufacturing. Power Integrations' proven TOPSwitch technology has been deployed in millions of applications worldwide, offering designers a trusted solution backed by extensive application support and documentation.
All specifications are subject to change. Please refer to the manufacturer's datasheet for the most current information.
