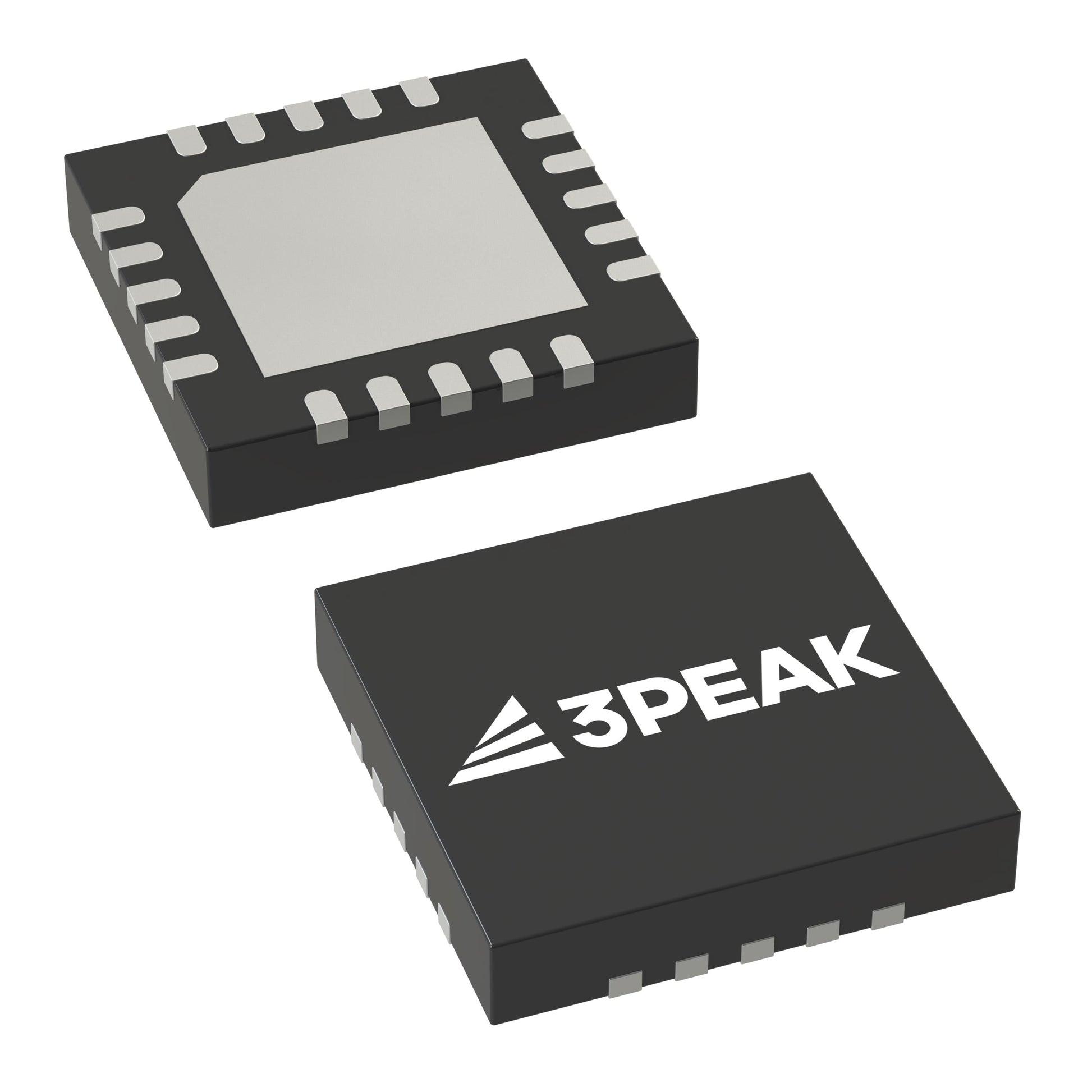

3PEAK TPC51701-QFOR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.15 | $10.15 |
| 15+ | $9.83 | $147.45 |
| 25+ | $9.61 | $240.25 |
| 50+ | $9.08 | $454.00 |
| 100+ | $8.01 | $801.00 |
| N+ | $1.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| ROHS |  |
The TPC51701-QFOR is a 16-bit, 1 MSPS analog-to-digital converter from 3PEAK. It features a multiplexed MUX-ADC architecture supporting up to 8 input channels, with both external and internal reference options. The SPI interface provides easy integration with microcontrollers and DSPs. Housed in a 20-WFQFN Exposed Pad package, it operates from -40°C to 125°C, making it ideal for precision industrial, automotive, and medical applications requiring high-resolution, high-speed conversion.
- High Resolution: 16-bit accuracy captures fine signal details for precision measurement.
- Fast Throughput: 1 MSPS sampling rate supports real-time monitoring of dynamic signals.
- Multi-Channel Flexibility: 4 or 8 channel options reduce component count in multi-sensor systems.
- Wide Operating Range: -40°C to 125°C ensures reliable performance in extreme environments.
- Dual Reference: Internal or external reference selection optimizes cost vs. accuracy.
High-Precision Industrial Sensing
The TPC51701-QFOR with 16-bit resolution and 1 MSPS sampling is perfect for precision industrial sensors, providing high-resolution digitization of pressure, strain, and temperature signals.
Automotive Battery Management
With -40°C to 125°C operation and 8-channel multiplexing, it can monitor multiple battery cell voltages in automotive BMS with high accuracy.
Medical Instrumentation
The 16-bit resolution enables precise measurement in medical devices like patient monitors and diagnostic equipment, where small signal variations matter.
Data Acquisition Systems
Its 1 MSPS rate and SPI interface make it suitable for high-speed multi-channel data loggers used in research and development.
Energy Infrastructure
In solar inverters and power monitoring, the high resolution and wide temperature range ensure accurate current and voltage sensing in harsh outdoor conditions.
- Q: What is the TPC51701-QFOR?
- A: It is a 16-bit analog-to-digital converter from 3PEAK with a MUX-ADC architecture.
- Q: What is the resolution?
- A: The resolution is 16 bits.
- Q: What is the sampling rate?
- A: The sampling rate is 1M SPS (1 MSPS).
- Q: How many channels does it have?
- A: It supports 4 or 8 input channels.
- Q: What interface does it use?
- A: It uses an SPI interface.
- Q: What are the reference options and package?
- A: It supports external and internal references, and comes in a 20-WFQFN Exposed Pad package operating from -40°C to 125°C.
