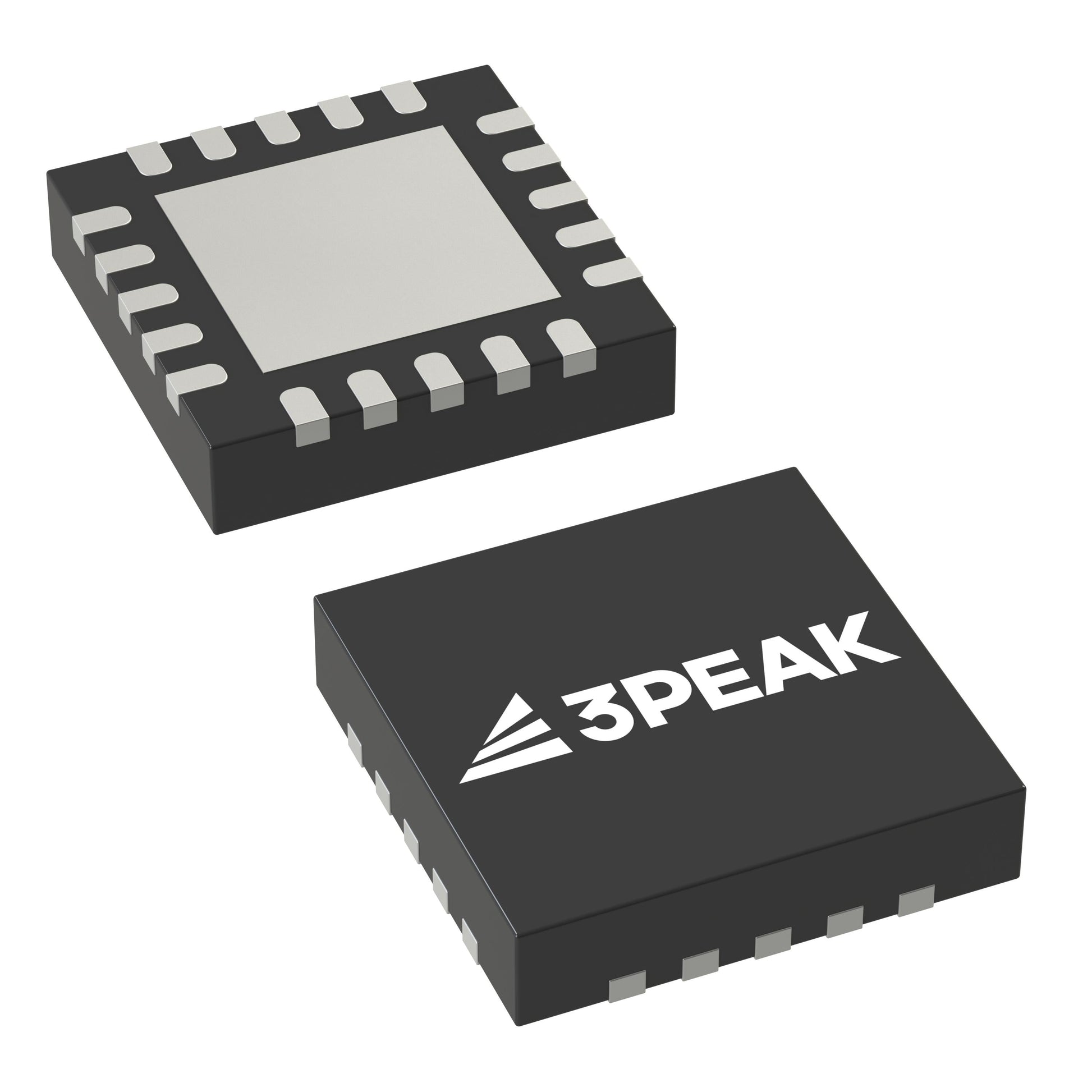

3PEAK TPQ80302-QF6R-S
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.58 | $2.58 |
| 15+ | $2.50 | $37.50 |
| 25+ | $2.45 | $61.25 |
| 50+ | $2.31 | $115.50 |
| 100+ | $2.04 | $204.00 |
| N+ | $0.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.1V |
| Voltage - Input (Max) | 80V |
| Voltage - Output (Min/Fixed) | 3.1V |
| Voltage - Output (Max) | 80V |
| Current - Output | 4A |
| Frequency - Switching | 100kHz ~ 2.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3.5x3.5) |
| ROHS |  |
The TPQ80302-QF6R-S from 3PEAK is a versatile Boost DC-DC converter designed for demanding applications requiring wide input and output voltage ranges. It operates from 3.1V to 80V input and can generate outputs from 3.1V to 80V, delivering up to 4A. The switching frequency is programmable from 100kHz to 2.2MHz, enabling optimization between efficiency and solution size. Housed in a 20-WFQFN package with exposed pad, it is ideal for automotive, industrial, and telecom systems where high-voltage step-up conversion is needed.
- Ultra-Wide 80V Input/Output Range: Handles automotive transients and industrial bus voltages without external protection.
- 4A Output Current: Supports high-power loads in boost configurations.
- Adjustable Frequency (100kHz-2.2MHz): Flexibility to optimize efficiency or reduce inductor size.
- 20-WFQFN with Exposed Pad: Excellent thermal performance for high-power density designs.
Automotive LED Lighting
With a wide 3.1V to 80V input range, the TPQ80302-QF6R-S is perfect for automotive LED drivers, handling load-dump and cold-crank conditions while boosting to required LED string voltages.
Industrial Power Supplies
Its 80V capability and 4A output make it suitable for industrial 24V/48V bus systems requiring step-up conversion for sensors, actuators, and control electronics.
Battery-Powered Systems with High-Voltage Rails
Boost from a low-voltage battery (e.g., 12V) to higher voltages (up to 80V) for applications like e-bikes, power tools, and backup power systems.
Telecom and Networking Equipment
Provides regulated high-voltage rails from intermediate bus voltages, ensuring stable operation in -48V telecom systems or PoE injectors.
Solar-Powered Microinverters
Efficiently boosts low panel voltages (e.g., 20-40V) to higher DC bus voltages for microinverter stages, maximizing energy harvest.
Medical Devices
Wide input range and adjustable frequency allow design flexibility for portable medical equipment requiring high-voltage generation from batteries.
- Q: What type of converter is the TPQ80302-QF6R-S?
- A: It is a Boost (step-up) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is 3.1V to 80V.
- Q: What is the output voltage range?
- A: The output voltage is adjustable from 3.1V to 80V.
- Q: What is the maximum output current?
- A: It can deliver up to 4A of output current.
- Q: What is the switching frequency?
- A: The switching frequency is adjustable from 100kHz to 2.2MHz.
- Q: What package is available?
- A: It is offered in a 20-WFQFN package with exposed pad.
