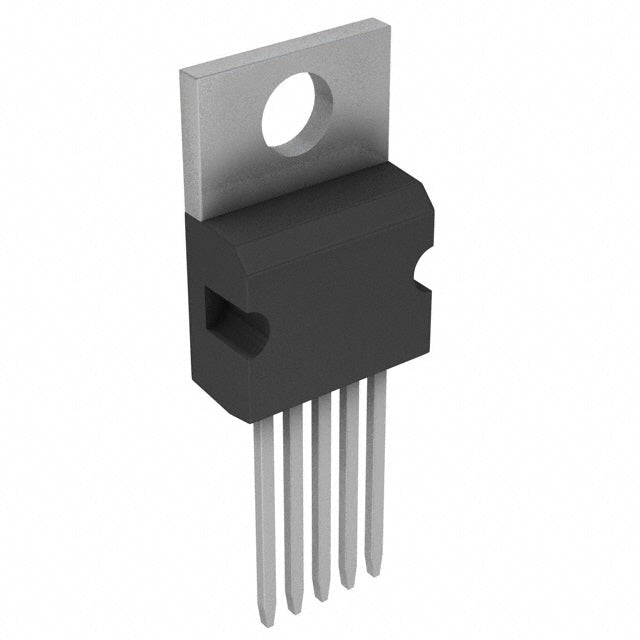

Texas Instruments TPS75701KCG3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.46 | $6.46 |
| 15+ | $6.26 | $93.90 |
| 25+ | $6.12 | $153.00 |
| 50+ | $5.78 | $289.00 |
| 100+ | $5.10 | $510.00 |
| N+ | $1.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | - |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 200 µA |
| Current - Supply (Max) | - |
| PSRR | 62dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| ROHS |  |
The Texas Instruments TPS75701KCG3 is a high-current, adjustable LDO linear regulator designed for demanding power applications. It can deliver up to 3A of output current, making it suitable for powering FPGAs, DSPs, and other high-power loads. The output voltage is adjustable, with a 1.22V reference, allowing for flexible design configurations. With a quiescent current of 200 µA and 62dB PSRR at 100Hz, it provides efficient and clean power regulation. The TO-220-5 package ensures excellent thermal performance for high-power dissipation.
- High Output Current: 3A capability supports power-hungry processors and FPGAs.
- Adjustable Output: Flexible output voltage setting via external resistors, including 5V.
- Excellent Thermal Performance: TO-220-5 package allows for efficient heat sinking in high-power applications.
- Good Noise Rejection: 62dB PSRR at 100Hz ensures stable operation in noisy environments.
High-Current FPGA & DSP Power
The 3A output current capability makes it ideal for powering core voltages of FPGAs and DSPs, providing a stable and reliable supply.
Server & Telecom Power Rails
Regulates 5V for logic and I/O circuits in servers and telecom equipment, with 62dB PSRR at 100Hz filtering out switching noise.
Industrial Motor Control
Provides a robust 5V supply for microcontrollers and gate drivers in motor control systems, handling high current transients.
Battery Charging Circuits
Can be used as a post-regulator for battery charging systems, providing a clean and stable voltage for charging logic.
Audio Amplifier Supplies
Delivers clean, low-noise power for audio amplifiers, with high PSRR minimizing hum and interference.
- Q: What is the output voltage of the TPS75701?
- A: The TPS75701 is an adjustable LDO with an output voltage range that includes 5V (set by external resistors).
- Q: What is the maximum output current?
- A: It can deliver up to 3A of output current.
- Q: What is the input voltage range?
- A: The reference voltage is 1.22V, and the input voltage range is not fully specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is not specified in the provided data; please refer to the datasheet.
- Q: What is the quiescent current?
- A: The quiescent current is 200 µA.
- Q: What package is available?
- A: It is available in the TO-220-5 package.
