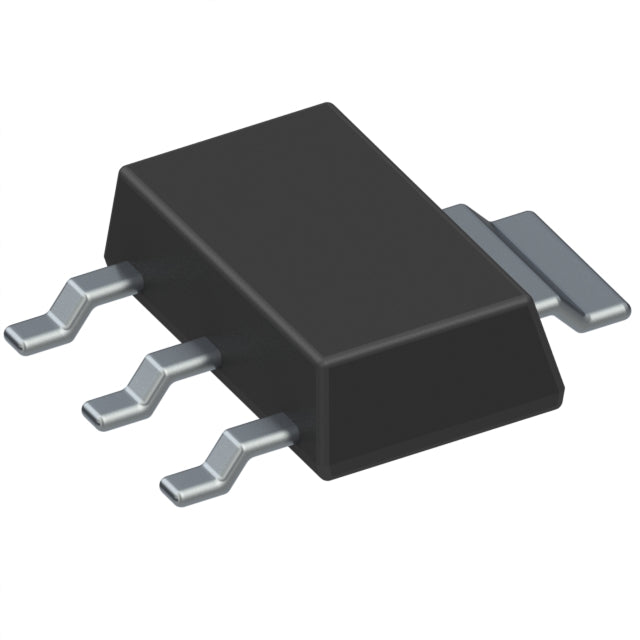

Taiwan Semiconductor Corporation TS2940CW33 RPG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.71 | $1.71 |
| 15+ | $1.66 | $24.90 |
| 25+ | $1.62 | $40.50 |
| 50+ | $1.53 | $76.50 |
| 100+ | $1.35 | $135.00 |
| N+ | $0.27 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Taiwan Semiconductor Corporation |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.8V @ 800mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 15 mA |
| Current - Supply (Max) | 110 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Voltage, Thermal Shutdown, Transient Voltage |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
| ROHS |
The TS2940CW33 RPG from Taiwan Semiconductor is a fixed 3.3V LDO regulator capable of delivering 1A. With a low dropout of 0.8V at 800mA and a wide input range up to 26V, it is versatile for consumer and industrial applications. The SOT-223 package provides a compact, thermally efficient solution.
- High Current: 1A output supports multiple loads on a 3.3V bus.
- Wide Input Voltage: Accepts up to 26V, simplifying design across different power sources.
- Low Dropout: 0.8V dropout at 800mA ensures efficient operation with minimal headroom.
- Compact SOT-223: Small footprint with good thermal dissipation for PCB designs.
Consumer Electronics
Provides a stable 3.3V rail for set-top boxes and gaming consoles, handling up to 1A for processors and memory.
Telecom Equipment
Powers baseband processors and RF transceivers in communication modules, with low dropout ensuring reliable operation.
Industrial Automation
Regulates 3.3V for PLCs and motor controllers, offering robust performance in harsh environments.
LED Lighting Systems
Supplies 3.3V to control ICs in smart LED drivers, maintaining consistent brightness control.
Automotive Aftermarket
Powers dashcams and GPS trackers from a 12V battery, converting down to 3.3V with high efficiency.
White Goods
Used in washing machines and dishwashers to power display panels and control logic.
- Q: What is the output voltage of the TS2940CW33 RPG?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can supply up to 1A of output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 4.3V to 26V.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.8V at 800mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 15 mA.
- Q: What package is available?
- A: It is available in a SOT-223 package.
- Q: What is the output voltage of the TS2940CW33 RPG?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can supply up to 1A of output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 4.3V to 26V.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.8V at 800mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 15 mA.
- Q: What package is available?
- A: It is available in a SOT-223 package.

TS2940CW33 RPG.pdf
