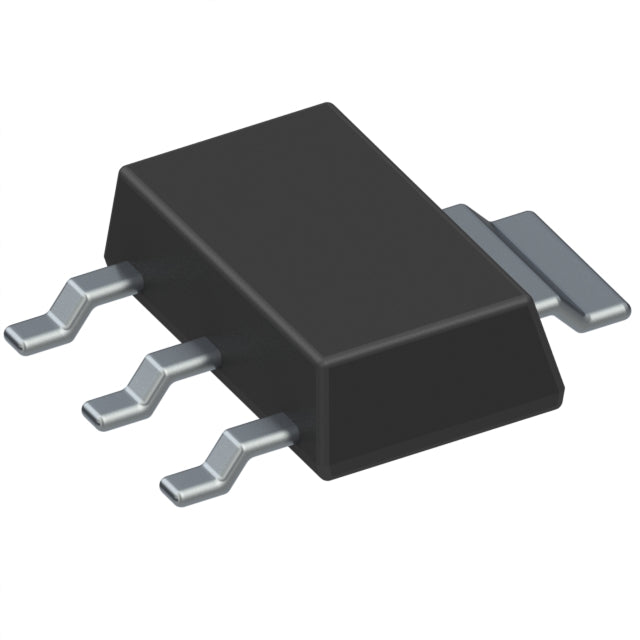

Taiwan Semiconductor Corporation TS4264CW50 RPG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.87 | $1.87 |
| 15+ | $1.81 | $27.15 |
| 25+ | $1.77 | $44.25 |
| 50+ | $1.67 | $83.50 |
| 100+ | $1.48 | $148.00 |
| N+ | $0.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Taiwan Semiconductor Corporation |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 400 µA |
| Current - Supply (Max) | 15 mA |
| PSRR | 54dB (100Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
| ROHS |
The TS4264CW50 RPG is a fixed 5V low dropout linear regulator from Taiwan Semiconductor, delivering up to 150mA of output current. Housed in a compact SOT-223 package, it features a low dropout voltage of 0.5V at 100mA, making it ideal for battery-powered and 5V rail applications. With a quiescent current of 400µA and 54dB PSRR at 100Hz, it provides clean, stable power for microcontrollers, sensors, and logic circuits. Its robust design ensures reliable performance in industrial and consumer electronics.
- Stable 5V Output: Fixed 5V regulation ensures compatibility with standard logic and MCU power rails, simplifying design.
- Low Dropout (0.5V @ 100mA): Maintains regulation with minimal input-to-output voltage difference, maximizing efficiency in battery applications.
- Compact SOT-223 Package: Offers a small footprint with good thermal dissipation for 150mA continuous loads.
- Moderate Quiescent Current (400µA): Balances performance and power consumption for always-on applications.
5V Logic and MCU Power Supply
With a fixed 5V output and 150mA capability, the TS4264CW50 RPG is ideal for powering 5V logic ICs, microcontrollers, and peripheral interfaces. The low dropout of 0.5V ensures stable operation even when the input rail dips close to 5.5V.
Battery-Powered Portable Devices
For battery-operated equipment, the 400µA quiescent current helps extend standby time. The SOT-223 package provides adequate heat dissipation for continuous 150mA loads in compact handheld designs.
Industrial Sensor Modules
Industrial sensors often require clean, regulated 5V rails. The TS4264CW50 RPG delivers stable output with 54dB PSRR at 100Hz, effectively filtering low-frequency noise from switching power supplies.
Automotive Infotainment Systems
In automotive environments, this regulator can power display drivers and audio codecs. Its robust SOT-223 package and 5V output make it suitable for infotainment head units where space is constrained.
Networking Equipment
Routers and switches use 5V rails for PHY transceivers and control logic. The TS4264CW50 RPG provides a simple, cost-effective solution with thermal shutdown protection for reliable operation.
Home Appliance Control Boards
White goods and smart home devices benefit from the fixed 5V output for user interface boards. The low dropout ensures stable performance during brownout conditions, improving system reliability.
- Q: What is the output voltage of the TS4264CW50 RPG?
- A: The TS4264CW50 RPG is a fixed 5V output LDO regulator.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA of continuous output current.
- Q: What is the input voltage range?
- A: The recommended maximum input voltage is 5V, making it suitable for 5V rail applications.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.5V at 100mA load, ensuring efficient operation with minimal headroom.
- Q: What is the quiescent current?
- A: The quiescent current is 400µA, which is moderate for general-purpose applications.
- Q: What package is available?
- A: It comes in a SOT-223 package, ideal for surface-mount designs with good thermal performance.
- Q: What is the output voltage of the TS4264CW50 RPG?
- A: The TS4264CW50 RPG is a fixed 5V output LDO regulator.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA of continuous output current.
- Q: What is the input voltage range?
- A: The recommended maximum input voltage is 5V, making it suitable for 5V rail applications.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.5V at 100mA load, ensuring efficient operation with minimal headroom.
- Q: What is the quiescent current?
- A: The quiescent current is 400µA, which is moderate for general-purpose applications.
- Q: What package is available?
- A: It comes in a SOT-223 package, ideal for surface-mount designs with good thermal performance.

TS4264CW50 RPG.pdf
