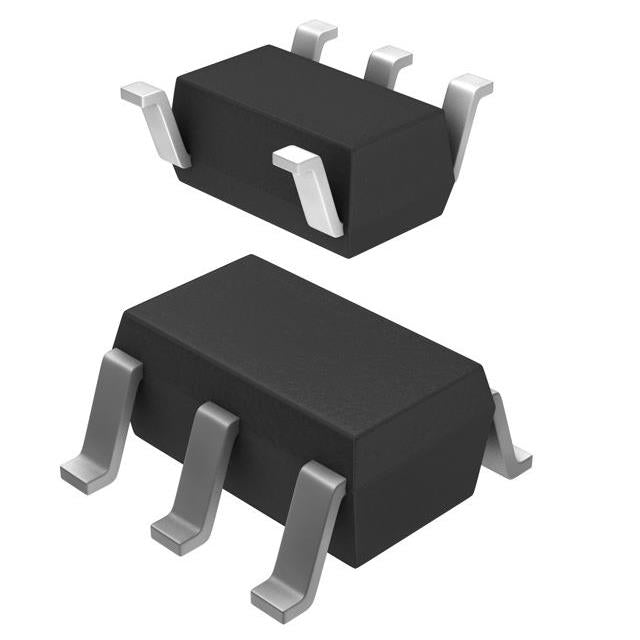

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Normaler Preis $1.06
Normaler Preis $1.12 Verkaufspreis $1.06
Sale Ausverkauft
Quantity Unit Price Total Price
1 $1.06 $1.06
15+ $1.03 $15.45
25+ $1.01 $25.25
50+ $0.95 $47.50
100+ $0.84 $84.00
N+ $0.17 Price Inquiry
Versand wird beim Checkout berechnet
Anzahl
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Taiwan Semiconductor Corporation
Product Series
Packaging Cut Tape (CT) | Tape & Reel (TR)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 7V
Voltage - Output (Min/Fixed) 1V
Voltage - Output (Max) 5.4V
Voltage Dropout (Max) 1V @ 300mA
Current - Output 300mA
Current - Quiescent (Iq) -
Current - Supply (Max) 85 µA
PSRR 60dB ~ 35dB (100Hz ~ 10kHz)
Control Features Current Limit, Enable
Protection Features Over Current, Over Temperature, Short Circuit
Operating Temperature -40°C ~ 125°C (TJ)
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case SC-74A, SOT-753
Supplier Device Package SOT-25
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The TS9015CX5 RFG from Taiwan Semiconductor is a fixed 5.4V low dropout linear regulator capable of delivering 300mA. Housed in a compact SOT-25 package, it offers a dropout voltage of just 1V at full load, making it efficient for battery-powered applications. With PSRR of 60dB at 100Hz, it effectively filters low-frequency noise, ensuring a clean output for sensitive electronics.

  • Stable 5.4V Output: Fixed voltage eliminates external resistor dividers, simplifying design.
  • Low Dropout (1V @ 300mA): Maintains regulation with minimal headroom, ideal for battery operation.
  • Compact SOT-25 Package: Saves board space in space-constrained designs.
  • Good Low-Frequency PSRR: 60dB at 100Hz reduces hum and ripple from power sources.

Battery-Powered Devices

The 5.4V fixed output and 300mA capability make it suitable for powering logic or analog circuits in battery-operated equipment where a stable rail above standard 5V is needed.

Portable Instrumentation

With a low 1V dropout, the TS9015CX5 RFG maintains regulation even as the battery discharges, extending usable runtime in handheld meters and sensors.

Industrial Sensors

The SOT-25 package and 300mA output support precision sensor interfaces that require a clean 5.4V supply with moderate current draw.

Audio Pre-Amplifiers

PSRR of 60dB at 100Hz helps reject mains hum and low-frequency noise, making it a good choice for small audio stages.

Communication Modules

Provides a stable 5.4V rail for RF modules or transceivers, with adequate current for short-burst transmission.

Reference Voltage Source

The fixed 5.4V output can serve as a local reference for ADC or DAC circuits in mixed-signal designs.

Q: What is the output voltage of the TS9015CX5 RFG?
A: The fixed output voltage is 5.4V.
Q: What is the maximum output current?
A: It can deliver up to 300mA.
Q: What is the input voltage range?
A: The maximum input voltage is 1V above the output (6.4V).
Q: What is the dropout voltage?
A: Dropout is 1V at 300mA load.
Q: What package is available?
A: It comes in a SOT-25 package.
Q: What is the PSRR performance?
A: PSRR is 60dB at 100Hz and 35dB at 10kHz.
Base Product Number : TS9015CX5
300mA 5.4V Fixed Output LDO Linear Regulator Low Dropout SOT-25 Taiwan Semiconductor
