AMD XC3S1000-4FG456C

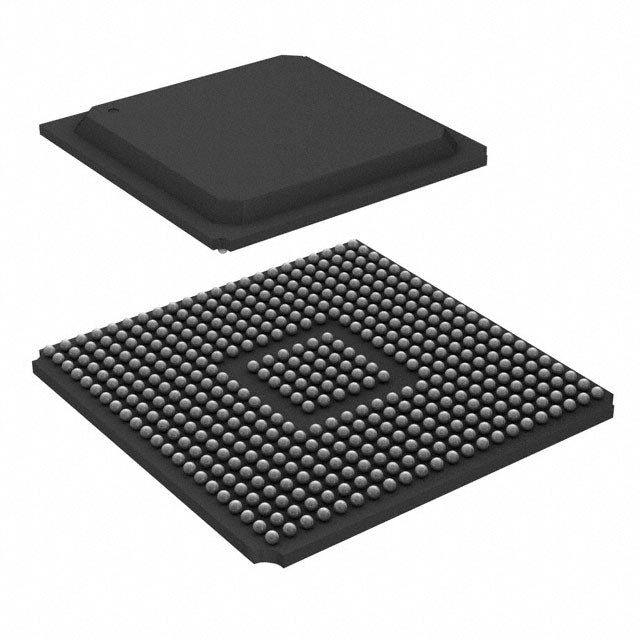

AMD Spartan-3 XC3S1000-4FG456C FPGA - High-Density Programmable Logic

The XC3S1000-4FG456C is a high-performance FPGA from AMD's proven Spartan-3 family, delivering 1 million system gates and 17,280 logic cells in a compact 456-pin FBGA package. Ideal for aerospace, automotive, industrial control, and telecommunications applications requiring reliable, cost-effective programmable logic with long lifecycle support.

Key Features & Benefits

• 1M System Gates - Ample logic resources for complex digital designs
• 17,280 Logic Elements - Flexible architecture for diverse applications
• 442 Kbits Embedded RAM - Integrated block RAM for data buffering and storage
• 333 User I/O Pins - Extensive connectivity for system integration
• 456-FBGA Package (23x23mm) - Space-efficient surface mount footprint
• Industrial Temperature Range - Reliable operation from 0°C to 85°C
• Low Power Operation - 1.14V to 1.26V core voltage

Applications

This FPGA is well-suited for embedded processing, digital signal processing, protocol bridging, motor control, industrial automation, test & measurement equipment, and legacy system upgrades requiring long-term availability.

Authorized Distributor - Full Traceability

We supply genuine AMD components with complete manufacturer documentation, certificates of conformance, and full supply chain traceability. All units are sourced through authorized channels to ensure authenticity and warranty coverage.

Documentation: Full datasheets, reference designs, and technical support resources available. Contact us for design-in assistance and volume pricing.

• XC3S1000-4FG456C.pdf
