AMD XC3S1500-5FGG456C

AMD Spartan-3 FPGA - XC3S1500-5FGG456C

The XC3S1500-5FGG456C is a high-performance Spartan-3 FPGA from AMD (formerly Xilinx), delivering 1.5 million system gates in a compact 456-ball fine-pitch BGA package. Engineered for demanding applications in aerospace, automotive, industrial control, and telecommunications, this device combines exceptional logic density with proven reliability.

Key Features & Benefits

• High Logic Capacity: 29,952 logic cells across 3,328 CLBs provide ample resources for complex digital designs
• Generous Memory: 589,824 total RAM bits for embedded data storage and buffering
• Extensive I/O: 333 user I/O pins support diverse interface requirements and multi-protocol connectivity
• Industrial Temperature Range: Qualified for 0°C to 85°C operation ensures reliable performance in harsh environments

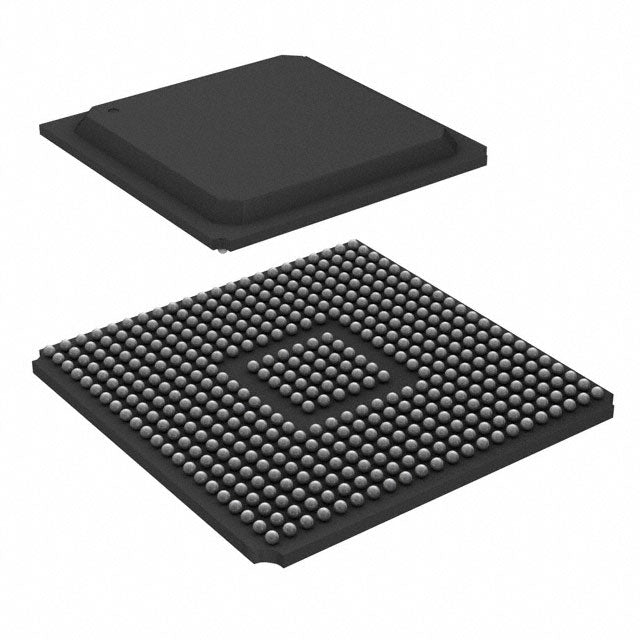

• Compact Footprint: 456-FBGA (23x23mm) package optimizes board space while maintaining excellent thermal characteristics
• Authorized Distribution: Full manufacturer documentation, traceability, and warranty support included

Ideal Applications

Perfect for embedded processing, DSP co-processing, high-speed communications, motor control, industrial automation, and aerospace/defense systems requiring long lifecycle availability.

Documentation & Support: Full datasheets, reference designs, and technical resources available. Contact our design-in team for application assistance and long-term availability commitments.
