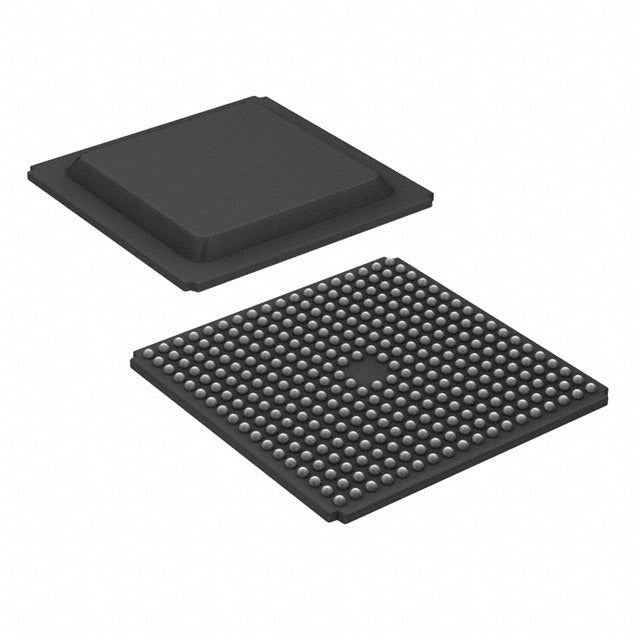

AMD XC3S500E-5FGG320C

AMD Spartan-3E FPGA - XC3S500E-5FGG320C

The XC3S500E-5FGG320C is a high-performance Spartan-3E series FPGA from AMD (formerly Xilinx), delivering 500,000 gates and 232 I/O in a compact 320-FBGA package. This versatile FPGA is engineered for demanding applications in aerospace, automotive, industrial control, and telecommunications.

Key Features & Benefits

• 500K System Gates - Ample logic resources for complex digital designs
• 10,476 Logic Cells - Flexible architecture for custom logic implementation
• 368,640 RAM Bits - Integrated block RAM for efficient data storage
• 232 User I/O - Extensive connectivity for interfacing with external systems
• 1164 CLBs - Configurable logic blocks for maximum design flexibility
• Industrial Temperature Range - Reliable operation from 0°C to 85°C (TJ)
• Low Power Consumption - 1.14V to 1.26V supply voltage for energy-efficient designs
• Surface Mount Package - 320-FBGA (19x19mm) for high-density PCB layouts

Ideal Applications

This FPGA is perfectly suited for embedded processing, digital signal processing (DSP), motor control, industrial automation, avionics systems, and telecommunications infrastructure. The Spartan-3E family offers an optimal balance of cost, performance, and power efficiency.

Authorized Distributor - Full Traceability

We supply only authorized distributor stock with complete manufacturer documentation, certificates of conformance, and full supply chain traceability. Every unit is backed by AMD's warranty and our commitment to long lifecycle availability to support your critical programs.

Need design support? Our technical team provides reference designs, application notes, and design-in assistance to help you successfully integrate this FPGA into your project.

• XC3S500E-5FGG320C.pdf
