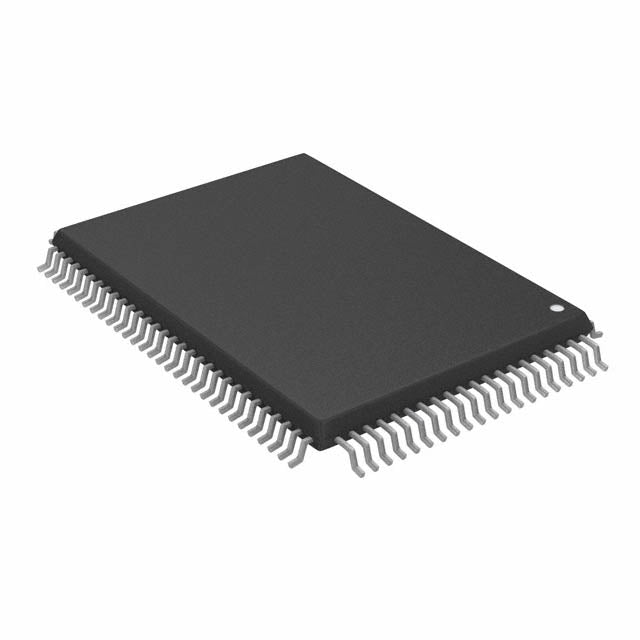

AMD XC4005E-4PQ100C

The XC4005E-4PQ100C is a high-performance Field Programmable Gate Array (FPGA) from AMD's renowned XC4000E/X product series. This versatile FPGA delivers 5000 gates of programmable logic with 196 configurable logic blocks (CLBs) and 466 logic elements, making it ideal for embedded systems, industrial control applications, and custom digital circuit designs.

Key Features:

• 5000 programmable gates with 196 CLBs for flexible logic implementation
• 77 I/O pins providing extensive connectivity options
• 6272 bits of total RAM for on-chip data storage
• 100-PQFP (20x14) surface mount package for space-efficient PCB designs
• Operating temperature range: 0°C to 85°C (TJ) for reliable industrial performance
• Supply voltage: 4.75V to 5.25V

Applications: This FPGA is perfectly suited for industrial automation, embedded processing, custom interface controllers, signal processing, and prototype development where reconfigurable logic is essential.

Quality Assurance: All components are sourced from authorized distributors and undergo rigorous quality testing to ensure authenticity and long-term reliability. We provide dedicated technical support to help you integrate this FPGA into your designs.
