AMD XC4013XL-2HT176C Field-Programmable Gate Array

The XC4013XL-2HT176C is a high-performance FPGA from AMD's proven XC4000E/X series, delivering 13,000 gates of programmable logic in a compact 176-pin TQFP package. Engineered for reliability in industrial, telecommunications, automotive, and aerospace applications requiring flexible, reconfigurable logic solutions.

Key Features & Benefits

• 13,000 Logic Gates – Ample capacity for complex digital designs and signal processing
• 145 I/O Pins – Extensive connectivity for interfacing with peripherals and systems
• 18,432 RAM Bits – Integrated memory for data buffering and state machines
• 576 CLBs (Configurable Logic Blocks) – Flexible architecture for custom logic implementation

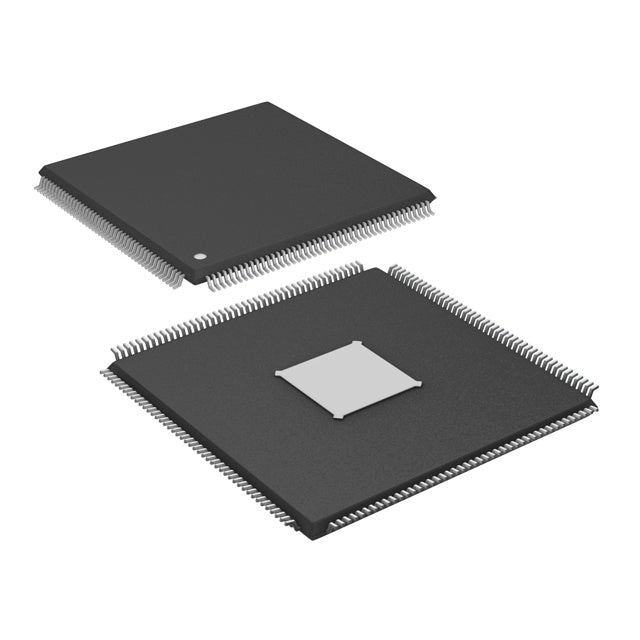

• Surface Mount 176-TQFP Package – Space-efficient 24×24mm footprint for high-density PCB layouts
• Industrial Temperature Range (0°C to 85°C) – Reliable operation in demanding environments
• 3V to 3.6V Supply Voltage – Low-power operation compatible with modern digital systems

Applications

Ideal for embedded control systems, digital signal processing (DSP), protocol bridging, custom interface logic, industrial automation, and legacy system upgrades requiring long lifecycle support and full traceability.

All specifications are sourced from the manufacturer and maintained for full traceability. This component is backed by our commitment to quality, authenticity verification, and long lifecycle support for critical applications.

• XC4013XL-2HT176C.pdf
