AMD XC4020XL-2PQ208I

AMD XC4020XL-2PQ208I FPGA - High-Density Programmable Logic Device

The XC4020XL-2PQ208I is a high-performance FPGA from AMD's proven XC4000E/X series, delivering 20,000 gates of programmable logic in a compact 208-pin PQFP package. Designed for industrial applications requiring reliable operation across extended temperature ranges (-40°C to 100°C), this device is ideal for aerospace, automotive, telecommunications, and industrial control systems.

Key Features & Benefits

• High Logic Density: 784 CLBs and 1,862 logic elements provide ample resources for complex digital designs
• Generous I/O Count: 160 I/O pins enable extensive connectivity for multi-interface applications
• Embedded Memory: 25,088 RAM bits for data buffering, lookup tables, and state machines
• Industrial Temperature Range: -40°C to 100°C (TJ) operation ensures reliability in harsh environments

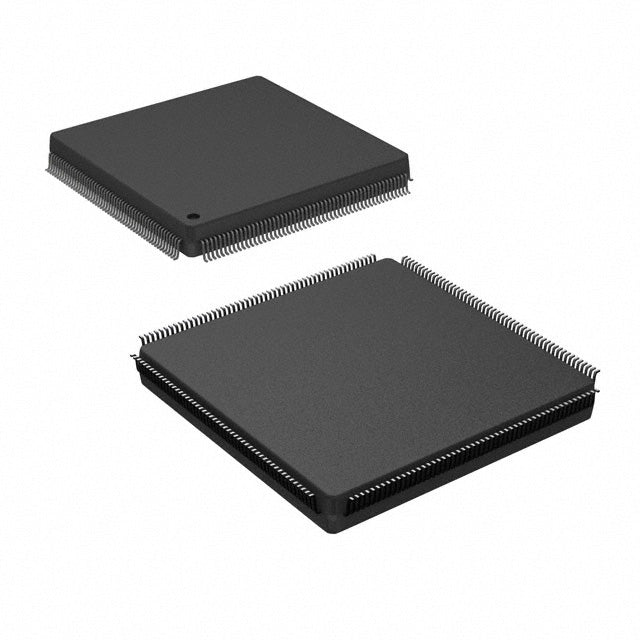

• Surface Mount Package: 208-PQFP (28x28mm) for automated assembly and space-efficient PCB layouts
• Proven Architecture: XC4000 series heritage with extensive design tool support and reference designs

Applications

This FPGA is well-suited for aerospace avionics, automotive engine control units, industrial automation controllers, telecommunications infrastructure, medical instrumentation, and defense systems requiring long lifecycle support.

Authorized Distributor Guarantee

We supply only authorized distributor stock with full manufacturer documentation, traceability, and warranty support. Each device includes quality certifications and is backed by our commitment to long lifecycle availability.

Design Resources & Support

Access comprehensive datasheets, application notes, reference designs, and development tool support. Our technical team can assist with design-in support, pin compatibility guidance, and lifecycle planning.

Need assistance with your design? Contact our applications engineering team for technical consultation, sample requests, or volume pricing.

• XC4020XL-2PQ208I.pdf
