AMD XC4020XL-3HT144C

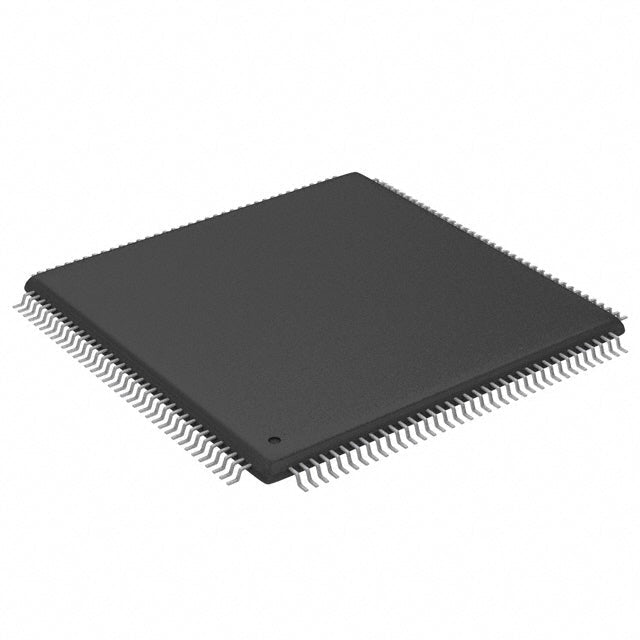

AMD XC4020XL-3HT144C Field-Programmable Gate Array (FPGA)

The XC4020XL-3HT144C is a high-performance field-programmable gate array from AMD's proven XC4000E/X series, delivering 20,000 gates of programmable logic capacity in a compact 144-pin TQFP surface-mount package. Ideal for aerospace, telecommunications, industrial control, and embedded system applications requiring reliable, long-lifecycle semiconductor components.

Key Features & Benefits

• 20,000 Logic Gates - Ample capacity for complex digital designs and signal processing
• 113 I/O Pins - Extensive connectivity for interfacing with multiple peripherals and systems
• 784 CLBs with 1,862 Logic Elements - Flexible architecture for custom logic implementation
• 25,088 Total RAM Bits - Integrated memory for data buffering and state machines
• 3V to 3.6V Supply Voltage - Low-power operation compatible with modern digital systems
• 0°C to 85°C Operating Range - Commercial temperature grade for standard industrial environments
• 144-TQFP Package (20x20mm) - Space-efficient surface-mount design with exposed pad for thermal management

Applications

This FPGA is well-suited for digital signal processing, protocol conversion, custom interface logic, embedded control systems, test and measurement equipment, and legacy system support where long-term availability and proven reliability are essential.

Authorized Distribution & Quality Assurance

As an authorized distributor, we provide fully traceable components with manufacturer documentation, compliance certifications, and lifecycle support. Every unit ships with quality assurance documentation suitable for aerospace, automotive, medical, and other high-reliability applications.

• XC4020XL-3HT144C.pdf
