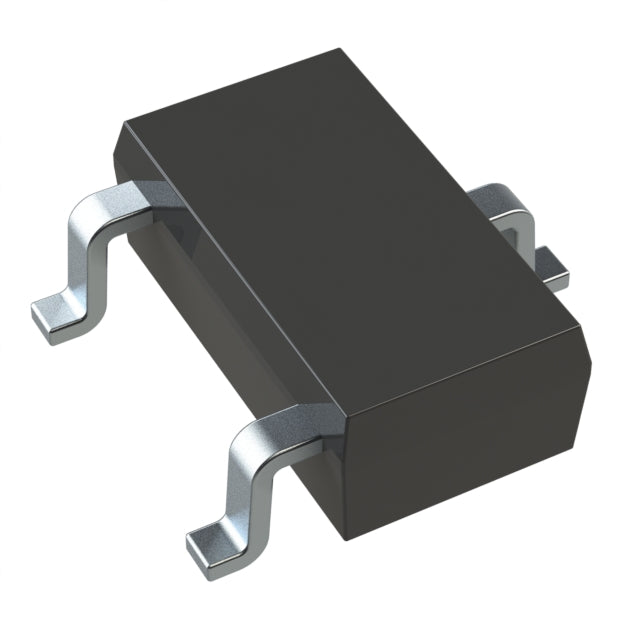

Torex Semiconductor Ltd XC6206P122MR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.59 | $0.59 |
| 15+ | $0.57 | $8.55 |
| 25+ | $0.56 | $14.00 |
| 50+ | $0.53 | $26.50 |
| 100+ | $0.47 | $47.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.96V @ 60mA |
| Current - Output | 60mA |
| Current - Quiescent (Iq) | 3 µA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| ROHS |  |
The XC6206P122MR-G from Torex Semiconductor is a fixed 1.2V linear regulator designed for ultra-low-power applications. It delivers up to 60mA with a low dropout voltage of 0.96V and a quiescent current of just 3 µA, making it perfect for battery-powered and energy-sensitive devices. Housed in a compact SOT-23 package, it offers a simple, reliable solution for generating a stable low-voltage rail. Its low power consumption and small footprint make it a popular choice for portable electronics and IoT modules.
- Ultra-Low Quiescent Current: 3 µA IQ is ideal for battery-powered devices, significantly extending operational life.
- Low Dropout Voltage: 0.96V dropout at 60mA allows efficient regulation from low input voltages.
- Compact SOT-23 Package: Small footprint suitable for space-constrained PCB designs.
- Stable Fixed Output: Provides a precise 1.2V rail for sensitive low-voltage electronics.
Low-Power Microcontrollers
Provides a stable 1.2V core supply for low-voltage MCUs in energy-harvesting and battery-powered sensors, with 3 µA IQ to minimize drain.
Real-Time Clocks (RTC)
Maintains a constant 1.2V supply for RTC modules in meters and appliances, ensuring accurate timekeeping with minimal power consumption.
Bluetooth Low Energy Modules
Powers BLE SoCs and transceivers, offering a clean and stable voltage rail for reliable wireless communication in wearables.
Portable Instrumentation
Regulates 1.2V for precision analog circuits and ADCs in handheld meters, preserving battery life with its low quiescent current.
Memory Backup Circuits
Provides a dedicated supply for SRAM or flash memory backup, ensuring data retention during main power loss.
IoT Edge Nodes
Ideal for always-on IoT sensors that require a stable low-voltage rail, balancing performance and power efficiency.
- Q: What is the output voltage of the XC6206P122MR-G?
- A: The fixed output voltage is 1.2V.
- Q: What is the maximum output current?
- A: It can supply up to 60mA.
- Q: What is the quiescent current?
- A: The quiescent current is very low at 3 µA.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.96V at 60mA load.
- Q: What is the package type?
- A: It comes in a SOT-23 package.
- Q: Is it suitable for battery-powered devices?
- A: Yes, its low quiescent current and low dropout make it ideal for battery-operated applications.
