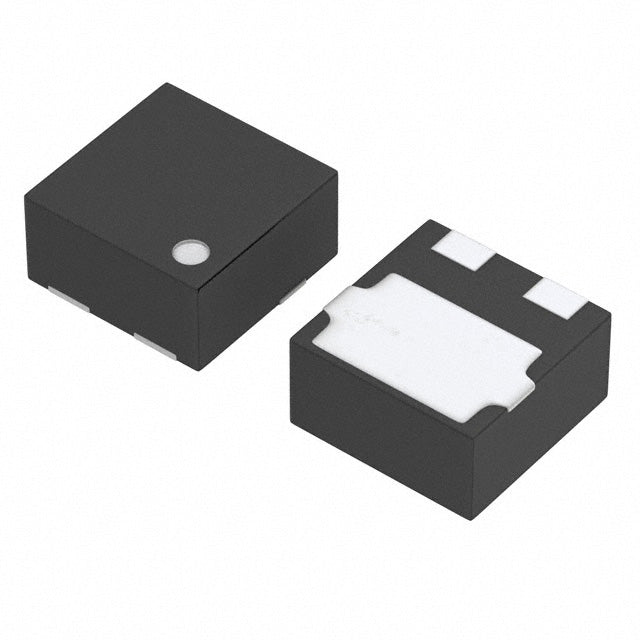

Torex Semiconductor Ltd XC6218P332HR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.56 | $0.56 |
| 15+ | $0.54 | $8.10 |
| 25+ | $0.53 | $13.25 |
| 50+ | $0.50 | $25.00 |
| 100+ | $0.44 | $44.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.32V @ 100mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 5 µA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SFN Exposed Pad |
| Supplier Device Package | 3-USP (1.2x1.2) |
| ROHS |  |
The XC6218P332HR-G is an ultra-low quiescent current LDO regulator from Torex Semiconductor, providing a fixed 3.3V output at up to 200mA. With a quiescent current of just 5µA and a dropout voltage of 0.32V at 100mA, it is engineered for battery-powered and energy-sensitive applications. The miniature 3-USP package measures only 1.2x1.2mm.
- Ultra-Low Quiescent Current: 5µA quiescent current dramatically extends battery life in standby and always-on applications.
- Miniature Package: 3-USP (1.2x1.2mm) footprint is ideal for space-constrained wearable and IoT designs.
- Low Dropout: 0.32V dropout at 100mA ensures efficient operation even with low input voltages.
- Stable 3.3V Output: Fixed output simplifies design and provides a reliable rail for digital and analog circuits.
Battery-Powered Wearables
The ultra-low 5µA quiescent current extends battery life in always-on devices like fitness trackers and smartwatches, where the 3.3V rail powers sensors and MCUs.
Energy Harvesting Systems
For solar or vibration-based energy harvesters, the low quiescent current minimizes power loss, making the XC6218P332HR-G ideal for micro-power applications.
IoT Sensor Nodes
Wireless sensor nodes that sleep most of the time benefit from the 5µA standby current, preserving battery capacity while providing a stable 3.3V supply when active.
Portable Medical Devices
Hearing aids and glucose monitors require minimal power draw. This LDO's low dropout and tiny 1.2x1.2mm package enable compact, efficient designs.
Real-Time Clock (RTC) Backup
Maintaining a 3.3V supply for RTCs in battery-backed systems is efficient with 5µA quiescent current, ensuring long-term timekeeping without draining the main battery.
Remote Controls and Key Fobs
Low standby power and small footprint make it perfect for battery-operated remote controls, where the 200mA output handles brief transmission bursts.
- Q: What is the output voltage?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can supply up to 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is 1.8V to 6.0V (typical for this series).
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.32V at 100mA output.
- Q: What is the quiescent current?
- A: Ultra-low quiescent current of 5µA.
- Q: What package is available?
- A: It comes in the 3-USP (1.2x1.2) package.
