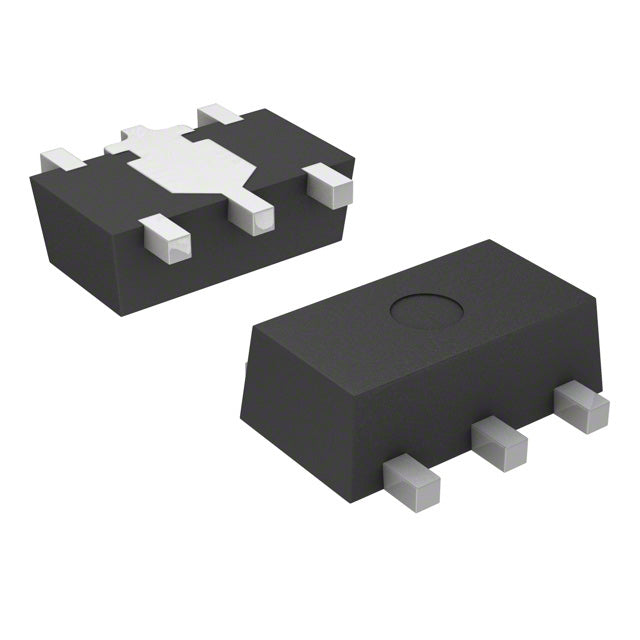

Torex Semiconductor Ltd XC6220A081PR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.82 | $1.82 |
| 15+ | $0.41 | $6.15 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.38 | $19.00 |
| 100+ | $0.34 | $34.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.575V @ 300mA |
| Current - Output | 700mA |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| ROHS |  |
The Torex XC6220A081PR-G is a fixed-output LDO regulator designed for ultra-low voltage applications, delivering a stable 0.8V supply. With a maximum output current of 700mA and a dropout voltage of just 0.575V at 300mA, it efficiently powers modern low-voltage digital circuits. The SOT-89-5 package and 18 μA quiescent current make it an excellent choice for portable and battery-operated devices requiring precise voltage regulation.
- Ultra-Low Output Voltage: Provides a precise 0.8V rail, essential for advanced low-power digital ICs.
- High Current for Low Voltage: 700mA output supports demanding processors while maintaining stability.
- Low Dropout: 0.575V dropout at 300mA ensures efficient operation even with limited input headroom.
- Compact and Efficient: SOT-89-5 package with 18 μA quiescent current ideal for space-constrained, battery-powered designs.
Low-Voltage Digital Cores
For modern microcontrollers and DSPs operating at 0.8V, the XC6220A081PR-G provides a precise, stable supply with 700mA capability, supporting high-performance computing in embedded systems.
Battery-Powered Wireless Modules
With a low quiescent current of 18 μA, this regulator is perfect for Bluetooth and Zigbee modules that require a 0.8V rail for their digital core, extending battery life in IoT devices.
FPGA Auxiliary Supplies
Use this LDO to power the auxiliary or configuration logic of FPGAs that require 0.8V, ensuring reliable startup and operation with minimal dropout.
Portable Audio Players
In audio codecs and digital signal processors, the 0.8V output with 50dB PSRR helps maintain audio clarity by reducing power supply noise.
Smart Sensors
For smart sensors with low-voltage logic, this regulator offers a compact SOT-89-5 solution with sufficient current for sensor fusion processors.
Wearable Health Monitors
The low dropout and 700mA current make it suitable for powering 0.8V logic in wearable health devices, balancing performance with battery efficiency.
- Q: What is the output voltage of the XC6220A081PR-G?
- A: The output voltage is fixed at 0.8V.
- Q: What is the maximum output current?
- A: This LDO can provide up to 700mA of output current.
- Q: What is the input voltage range?
- A: The input voltage must be above 0.8V plus dropout; refer to the datasheet for the full operating range.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.575V at 300mA, ensuring efficient low-voltage operation.
- Q: What is the quiescent current?
- A: The quiescent current is 18 μA, making it suitable for power-sensitive designs.
- Q: What package is available?
- A: It comes in the SOT-89-5 package.
