Torex Semiconductor Ltd XC6220A19BER-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.63 | $1.63 |
| 15+ | $0.38 | $5.70 |
| 25+ | $0.37 | $9.25 |
| 50+ | $0.35 | $17.50 |
| 100+ | $0.31 | $31.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.95V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

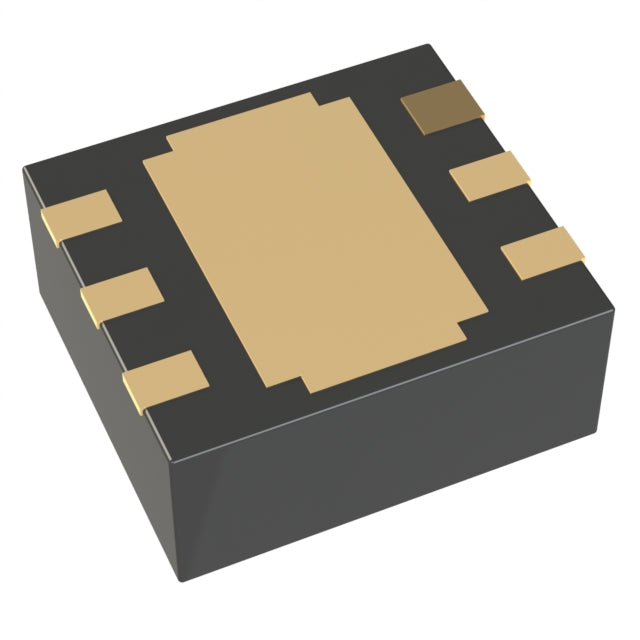

| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-USPC (1.8x2) |
| ROHS |  |
The Torex XC6220A19BER-G is a high-performance fixed-output LDO linear regulator delivering a stable 1.9V at up to 1A. Its ultra-low 18 μA quiescent current and 0.655V dropout voltage at full load make it exceptionally efficient for battery-powered devices. The compact 6-USPC package and 50dB PSRR at 1kHz ensure clean, reliable power in space-constrained applications.
- Extended Battery Life: Ultra-low 18 μA quiescent current minimizes standby power consumption in portable devices.
- High Current Capacity: 1A output capability supports demanding loads while maintaining stable regulation.
- Low Dropout Operation: 0.655V dropout at 1A allows operation with minimal input-to-output voltage headroom, improving efficiency.
- Excellent Noise Rejection: 50dB PSRR at 1kHz filters supply noise, ensuring clean power for sensitive analog and RF circuits.
Battery-Powered IoT Sensors
The low 18 μA quiescent current extends battery life in always-on IoT sensor nodes, while the 1A output capability supports burst-mode wireless transmissions.
Portable Medical Devices
The stable 1.9V output and low dropout voltage ensure reliable operation of sensitive analog front-ends in battery-operated medical monitors, even as the battery discharges.
Wireless Communication Modules
With 50dB PSRR at 1kHz, this regulator effectively filters power supply noise, maintaining clean power for RF transceivers and improving signal integrity.
Industrial Control Systems
The 1A current rating and fixed 1.9V output provide a robust power solution for microcontrollers and digital logic in industrial automation equipment.
Wearable Electronics
The compact 6-USPC package and high efficiency make it ideal for smartwatches and fitness trackers, where board space and power consumption are critical.
Automotive Infotainment
While not automotive qualified, the regulator's stable output and low dropout make it suitable for aftermarket infotainment systems requiring clean 1.9V rails.
- Q: What is the output voltage of the XC6220A19BER-G?
- A: This LDO regulator provides a fixed output voltage of 1.9V.
- Q: What is the maximum output current?
- A: The XC6220A19BER-G can deliver up to 1A of continuous output current.
- Q: What is the input voltage range?
- A: The recommended input voltage is 1.95V, with a typical operating range suitable for this fixed-output device.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at a 1A load, ensuring efficient operation with minimal headroom.
- Q: What is the quiescent current?
- A: The quiescent current is a low 18 μA, making it ideal for battery-powered applications.
- Q: What package is available?
- A: It comes in a compact 6-USPC (1.8x2) package, suitable for space-constrained designs.
