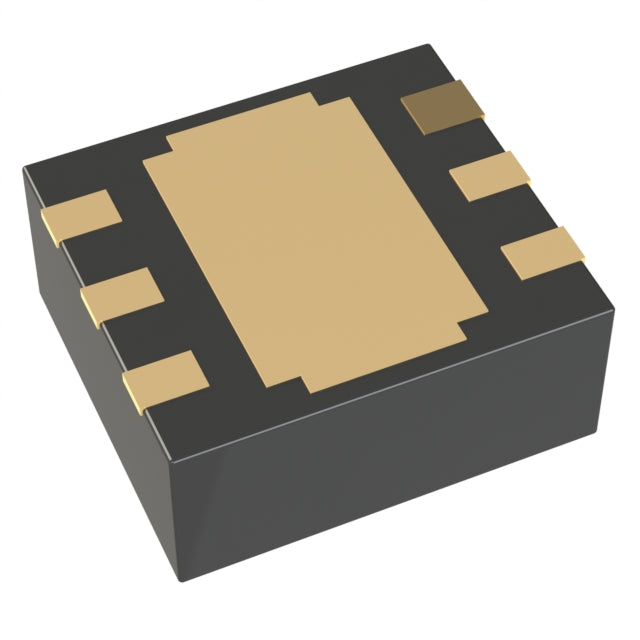

Torex Semiconductor Ltd XC6220A21BER-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.63 | $1.63 |
| 15+ | $0.38 | $5.70 |
| 25+ | $0.37 | $9.25 |
| 50+ | $0.35 | $17.50 |
| 100+ | $0.31 | $31.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-USPC (1.8x2) |
| ROHS |  |
The Torex XC6220A21BER-G is a high-performance fixed-output LDO linear regulator delivering a stable 2.15V at up to 1A. Its ultra-low 18 μA quiescent current and 0.655V dropout voltage at full load make it exceptionally efficient for battery-powered devices. The compact 6-USPC package and 50dB PSRR at 1kHz ensure clean, reliable power in space-constrained applications.
- Precise Output Voltage: Fixed 2.15V output meets the requirements of specialized digital and RF ICs.
- Low Power Consumption: 18 μA quiescent current extends battery life in portable and standby applications.
- High Current Delivery: 1A output capability supports power-hungry loads without voltage sag.
- Excellent Noise Performance: 50dB PSRR at 1kHz ensures clean power for sensitive electronics.
High-Speed Digital Logic
The 2.15V output provides stable power for high-speed digital ICs, ensuring reliable switching and reduced signal integrity issues.
RF Transceivers
With 50dB PSRR at 1kHz, this regulator effectively filters supply noise, maintaining clean power for RF front-ends in communication devices.
Portable Gaming Consoles
The 1A output supports processors and graphics chips, while the low quiescent current extends battery life during gameplay.
Smart Meters
This LDO delivers reliable power for utility metering systems, ensuring accurate measurement and data transmission.
Security Cameras
The stable output and compact package make it suitable for IP cameras and wireless security devices.
Industrial Automation
The robust 1A current capability and low dropout voltage support PLCs and motor control circuits in factory environments.
- Q: What is the output voltage of the XC6220A21BER-G?
- A: This LDO regulator provides a fixed output voltage of 2.15V.
- Q: What is the maximum output current?
- A: The XC6220A21BER-G can deliver up to 1A of continuous output current.
- Q: What is the input voltage range?
- A: The recommended input voltage is 2.15V, with a typical operating range suitable for this fixed-output device.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at a 1A load, ensuring efficient operation with minimal headroom.
- Q: What is the quiescent current?
- A: The quiescent current is a low 18 μA, making it ideal for battery-powered applications.
- Q: What package is available?
- A: It comes in a compact 6-USPC (1.8x2) package, suitable for space-constrained designs.
