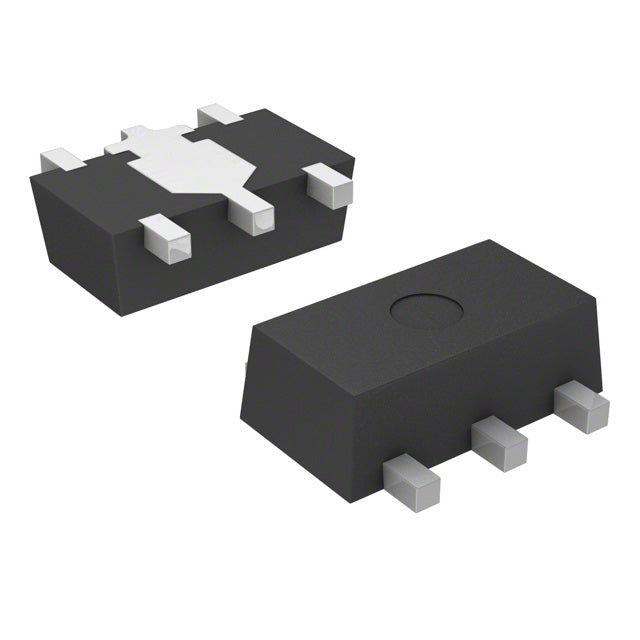

Torex Semiconductor Ltd XC6220A23BPR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.82 | $1.82 |
| 15+ | $0.41 | $6.15 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.38 | $19.00 |
| 100+ | $0.34 | $34.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.35V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| ROHS |  |
The Torex XC6220A23BPR-G is a fixed 2.3V LDO linear regulator delivering up to 1A. Its ultra-low 18 μA quiescent current and 0.655V dropout voltage make it an excellent choice for battery-operated devices. The SOT-89-5 package offers a compact, thermally efficient solution, while 50dB PSRR at 1kHz provides clean, stable power for sensitive electronics.
- Ultra-Low Power: 18 μA quiescent current significantly reduces standby power consumption.
- High Current Delivery: 1A output supports demanding loads like processors and RF transceivers.
- Efficient Dropout: 0.655V dropout at 1A maximizes battery utilization.
- Excellent Noise Rejection: 50dB PSRR at 1kHz ensures clean output for analog and digital circuits.
- Space-Saving Package: SOT-89-5 is ideal for compact PCB layouts.
Digital Cameras
Powering image sensors and DSPs, the XC6220A23BPR-G provides a stable 2.3V rail with 1A capability, handling burst currents during image capture and processing.
Portable Test Equipment
For multimeters and oscilloscopes, the low quiescent current extends battery life while the low dropout ensures accurate measurements even as batteries discharge.
Bluetooth Speakers
The regulator supplies a clean 2.3V for the Bluetooth SoC and audio codec, with 50dB PSRR minimizing noise from the battery charger.
Industrial Sensors
In 4-20mA loop-powered transmitters, the LDO converts the loop voltage to a stable 2.3V for the sensor and ADC, ensuring accurate readings.
Wearable Fitness Trackers
With 18 μA quiescent current, this LDO is perfect for always-on heart rate monitors and accelerometers, maximizing battery life in tiny devices.
Set-Top Boxes
Providing a dedicated 2.3V rail for HDMI or tuner circuits, the regulator ensures clean power and stable operation during channel scans.
- Q: What is the output voltage of the XC6220A23BPR-G?
- A: The fixed output voltage is 2.3V.
- Q: What is the maximum output current?
- A: It can provide up to 1A of output current.
- Q: What is the input voltage range?
- A: The minimum input voltage is 2.35V; the absolute maximum is typically 6.0V (refer to datasheet).
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.655V at 1A load.
- Q: What is the quiescent current?
- A: Quiescent current is a low 18 μA.
- Q: What package is available?
- A: It comes in a SOT-89-5 package.
