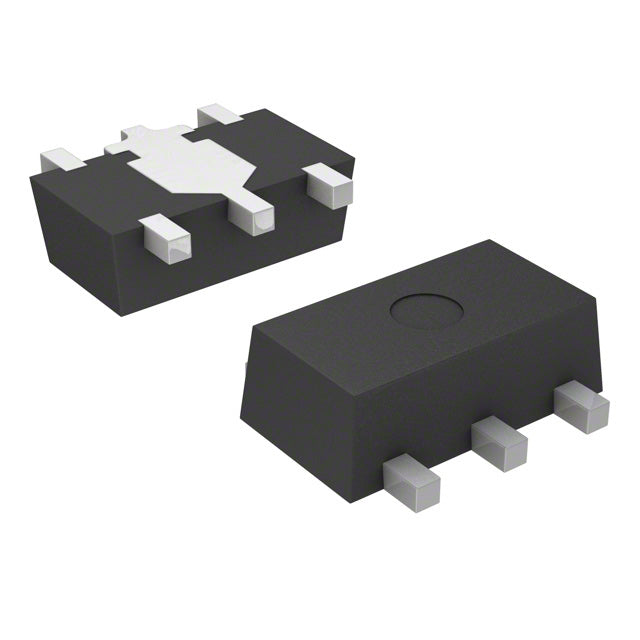

Torex Semiconductor Ltd XC6220A241PR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.82 | $1.82 |
| 15+ | $0.41 | $6.15 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.38 | $19.00 |
| 100+ | $0.34 | $34.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.4V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| ROHS |  |
The Torex XC6220A241PR-G is a fixed 2.4V LDO linear regulator capable of sourcing 1A. With a low quiescent current of 18 μA and a dropout voltage of 0.655V at full load, it is designed for energy-efficient and battery-powered applications. The SOT-89-5 package offers a compact footprint with good thermal dissipation, while 50dB PSRR at 1kHz ensures a clean output for noise-sensitive circuits.
- Low Power Consumption: 18 μA quiescent current is ideal for battery-powered devices.
- High Output Current: 1A capability supports a wide range of loads.
- Low Dropout: 0.655V dropout at 1A allows operation from low input voltages.
- Good PSRR: 50dB at 1kHz reduces supply noise, enhancing performance.
- Compact SOT-89-5: Saves board space while providing adequate thermal performance.
DDR Memory Termination
For DDR2/DDR3 low-voltage versions, a 2.4V rail is sometimes needed for VTT. The XC6220A241PR-G provides 1A with low noise, ensuring signal integrity.
Portable Gaming Consoles
Powering the CPU and GPU, this LDO delivers stable 2.4V during intense gaming sessions, with low dropout preventing shutdowns as the battery drains.
Medical Monitoring Devices
In wearable ECG or SpO2 monitors, the low quiescent current extends battery life while the clean output ensures accurate signal acquisition.
Smart Home Thermostats
The regulator powers the display and Wi-Fi module, maintaining a stable 2.4V even during network transmissions.
RF Transceivers
For Zigbee or LoRa modules, the 50dB PSRR at 1kHz filters out power supply noise, improving receiver sensitivity and range.
Barcode Scanners
In handheld scanners, the LDO provides a stable 2.4V for the laser driver and decoding IC, ensuring reliable reads.
- Q: What is the output voltage of the XC6220A241PR-G?
- A: This fixed-output LDO provides a stable 2.4V output.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of continuous current.
- Q: What is the input voltage range?
- A: The minimum input voltage is 2.4V; the absolute maximum is typically 6.0V (see datasheet).
- Q: What is the dropout voltage?
- A: Dropout is 0.655V at a 1A load.
- Q: What is the quiescent current?
- A: Quiescent current is only 18 μA.
- Q: What package is available?
- A: It is offered in the SOT-89-5 package.
