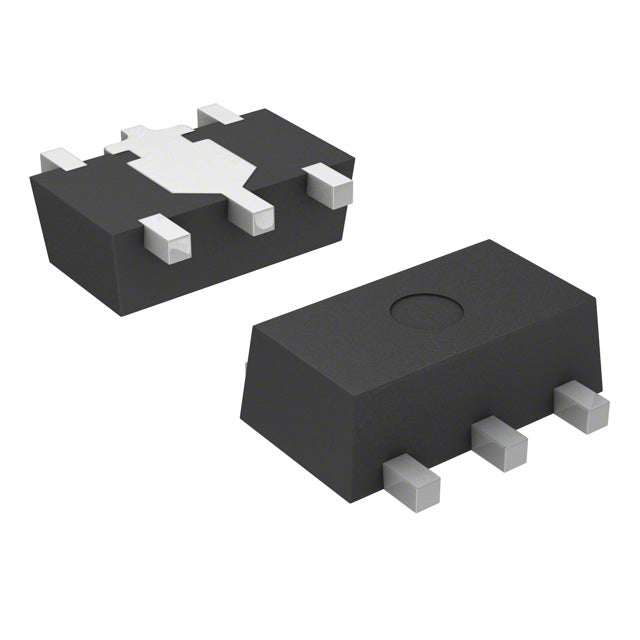

Torex Semiconductor Ltd XC6220A24BPR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.82 | $1.82 |
| 15+ | $0.41 | $6.15 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.38 | $19.00 |
| 100+ | $0.34 | $34.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.45V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| ROHS |  |
The Torex XC6220A24BPR-G is a fixed 2.4V LDO linear regulator delivering up to 1A. Its ultra-low 18 μA quiescent current and 0.655V dropout voltage make it an excellent choice for battery-operated devices. The SOT-89-5 package offers a compact, thermally efficient solution, while 50dB PSRR at 1kHz provides clean, stable power for sensitive electronics.
- Ultra-Low Quiescent Current: 18 μA extends battery life in standby mode.
- 1A Output Capability: Suitable for high-current loads.
- Low Dropout Voltage: 0.655V at 1A ensures efficient operation.
- High PSRR: 50dB at 1kHz filters noise for clean power.
- Compact Package: SOT-89-5 saves PCB space.
Portable Printers
Powering the print head and control logic, the XC6220A24BPR-G delivers 1A with low dropout, ensuring consistent print quality even with fluctuating battery voltage.
GPS Navigation Devices
The regulator provides a stable 2.4V for the GPS receiver and display, with low quiescent current extending battery life during navigation.
Wireless Headsets
In Bluetooth earbuds, the LDO powers the audio codec and RF chip, with 50dB PSRR minimizing noise from the charging circuit.
Industrial Handhelds
For rugged PDAs, the low dropout allows operation from a 3.6V Li-ion battery down to 2.45V, maximizing runtime.
Smart Locks
Powering the motor driver and Wi-Fi module, this LDO ensures reliable operation with 1A peak current during lock actuation.
Digital Cameras
Providing a clean 2.4V rail for the image processor, the regulator maintains stable performance during rapid-fire shooting.
- Q: What is the output voltage of the XC6220A24BPR-G?
- A: The fixed output voltage is 2.4V.
- Q: What is the maximum output current?
- A: It can provide up to 1A of output current.
- Q: What is the input voltage range?
- A: The minimum input voltage is 2.45V; the absolute maximum is typically 6.0V (refer to datasheet).
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.655V at 1A load.
- Q: What is the quiescent current?
- A: Quiescent current is a low 18 μA.
- Q: What package is available?
- A: It comes in a SOT-89-5 package.
