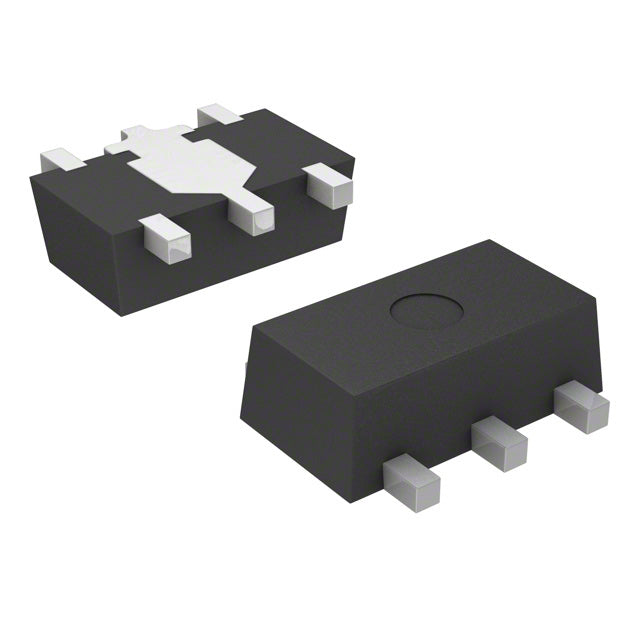

Torex Semiconductor Ltd XC6220A36BPR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.82 | $1.82 |
| 15+ | $0.41 | $6.15 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.38 | $19.00 |
| 100+ | $0.34 | $34.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.65V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| ROHS |  |
The Torex XC6220A36BPR-G is a fixed-output LDO regulator delivering a precise 3.65V at up to 1A. Its low 18 μA quiescent current and 50dB PSRR make it an excellent choice for battery-powered and noise-sensitive applications. The SOT-89-5 package ensures efficient heat dissipation and compact design.
- Ultra-Low Quiescent Current: 18 μA extends battery life in standby mode.
- High Output Current: 1A capability supports a wide range of applications.
- Superior Noise Rejection: 50dB PSRR at 1kHz maintains signal integrity.
- Compact and Reliable: SOT-89-5 package offers thermal efficiency and small footprint.
High-Precision Data Acquisition
The 3.65V output is ideal for data acquisition systems requiring a stable reference voltage for high-resolution ADCs.
Battery-Operated Devices
With 18 μA quiescent current, this LDO is perfect for remote controls and portable devices that need long battery life.
Communication Infrastructure
For base stations and network equipment, the 1A output and high PSRR ensure clean power for signal processing circuits.
Industrial Automation
The SOT-89-5 package provides robust thermal performance for continuous operation in factory environments.
Medical Implants
Low quiescent current and stable output make it suitable for implantable devices where power efficiency is critical.
LED Drivers
For constant-voltage LED applications, this regulator provides a stable 3.65V rail with minimal ripple.
- Q: What is the output voltage of the XC6220A36BPR-G?
- A: The XC6220A36BPR-G provides a fixed output of 3.65V.
- Q: What is the maximum output current?
- A: It can supply up to 1A of continuous current.
- Q: What is the input voltage range?
- A: The input voltage must be higher than 3.65V plus dropout; typical maximum is 6V (refer to datasheet).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is 18 μA, ensuring low standby power.
- Q: What package is this available in?
- A: It is available in the SOT-89-5 package.
