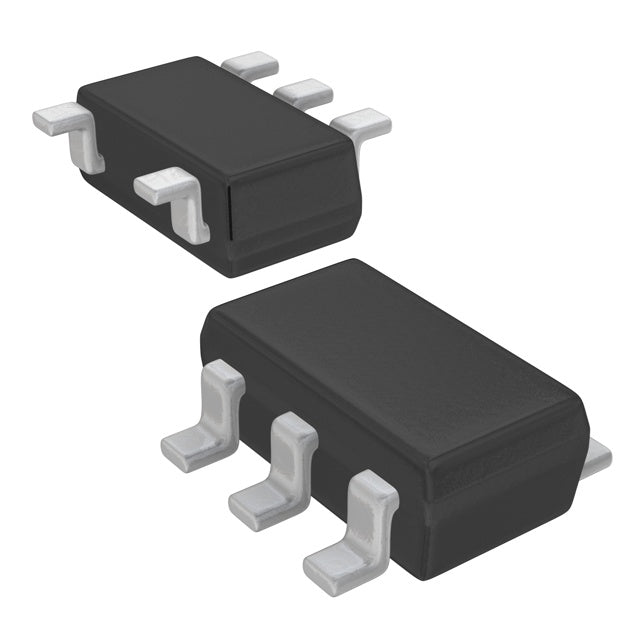

Torex Semiconductor Ltd XC6220B301MR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.56 | $1.56 |
| 15+ | $0.36 | $5.40 |
| 25+ | $0.35 | $8.75 |
| 50+ | $0.33 | $16.50 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-25-5 |
| ROHS |  |
The Torex XC6220B301MR-G is a fixed 3.0V LDO regulator capable of delivering up to 1A. With a dropout voltage of 0.655V at full load and a quiescent current of just 18 μA, it offers an excellent balance of power efficiency and output capability. The SOT-25-5 package ensures easy integration into standard PCB layouts.
- High Output Current: 1A capability supports demanding loads like FPGAs and RF modules.
- Low Quiescent Current: 18 μA minimizes power loss in battery-operated systems.
- Stable 3V Output: Fixed output simplifies design for 3V logic families.
- Standard Package: SOT-25-5 is widely used and easy to source.
High-Current FPGA/CPLD Power
The 1A output capability makes it suitable for powering FPGA core logic or CPLD banks requiring stable 3V.
Multi-Channel Sensor Arrays
In industrial sensor systems, the 1A output can power multiple sensors and signal conditioning circuits simultaneously.
Portable Test Equipment
With 18 μA quiescent current, this LDO supports battery-powered multimeters and oscilloscopes needing high current bursts.
Communication Modules
For Wi-Fi or cellular modules drawing up to 1A during transmission, this regulator provides stable 3V power.
Automotive Infotainment
The SOT-25-5 package and 1A capability support display drivers and audio amplifiers in infotainment systems.
Distributed Power Architectures
As a post-regulation stage, it provides clean 3V rails from 5V intermediate buses with minimal noise.
- Q: What is the output voltage of the XC6220B301MR-G?
- A: The output voltage is fixed at 3.0V, suitable for 3V logic and analog circuits.
- Q: What is the maximum output current?
- A: This LDO can deliver up to 1A of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage is rated at 3V, with typical operation requiring input above 3.655V.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at 1A, which is acceptable for high-current applications.
- Q: What is the quiescent current?
- A: The quiescent current is 18 μA, offering a good balance for high-current LDOs.
- Q: What package is available?
- A: It is offered in the SOT-25-5 package, a common 5-pin SOT-23 variant.
