Torex Semiconductor Ltd XC6233H3219R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.45 | $0.45 |
| 15+ | $0.43 | $6.45 |
| 25+ | $0.42 | $10.50 |
| 50+ | $0.40 | $20.00 |
| 100+ | $0.35 | $35.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.38V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 87 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

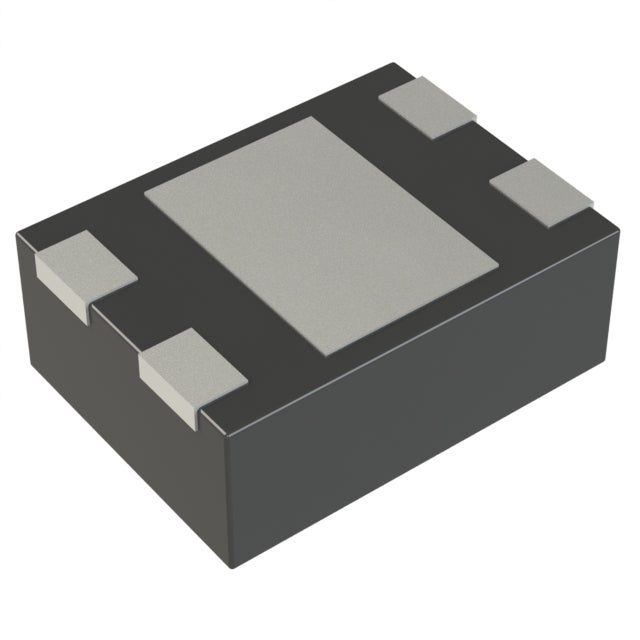

| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | USPQ-4B04 |
| ROHS |  |
The Torex XC6233H3219R-G is a 200mA LDO voltage regulator offering a fixed 3.2V output. With an ultra-low 87µA quiescent current and 75dB PSRR at 1kHz, it ensures clean, efficient power delivery. The USPQ-4B04 package is perfect for compact, battery-powered applications.
- Ultra-Low Quiescent Current: 87µA helps maximize battery life in portable and standby applications.
- Excellent PSRR: 75dB at 1kHz filters noise for sensitive analog and digital circuits.
- Low Dropout Voltage: 0.38V at 200mA enables efficient operation from 3.3V rails.
- Compact USPQ-4B04 Package: Saves board space for miniaturized electronic designs.
3.3V to 3.2V Conversion
Ideal for systems with a 3.3V rail needing a slightly lower, stable 3.2V supply for specific ICs, with only 0.38V dropout.
Battery-Powered Cameras
Low quiescent current (87µA) and 200mA output support image sensors and processors in battery-operated cameras and action cams.
Portable Medical Devices
Stable 3.2V output with high PSRR ensures reliable operation of diagnostic sensors and monitoring equipment.
Wireless Charging Receivers
Provides clean power for wireless charging receiver ICs, reducing noise interference in the power management path.
Smart Home Sensors
Compact package and low power consumption make it suitable for smart thermostats, door sensors, and environmental monitors.
LED Driver Bias Supply
Can be used as a bias supply for LED drivers, providing a stable voltage reference for consistent brightness control.
- Q: What is the output voltage of the XC6233H3219R-G?
- A: The fixed output voltage is 3.2V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.38V at 200mA output.
- Q: What is the quiescent current?
- A: The quiescent current is 87 µA.
- Q: What package is available?
- A: It comes in the USPQ-4B04 package.
